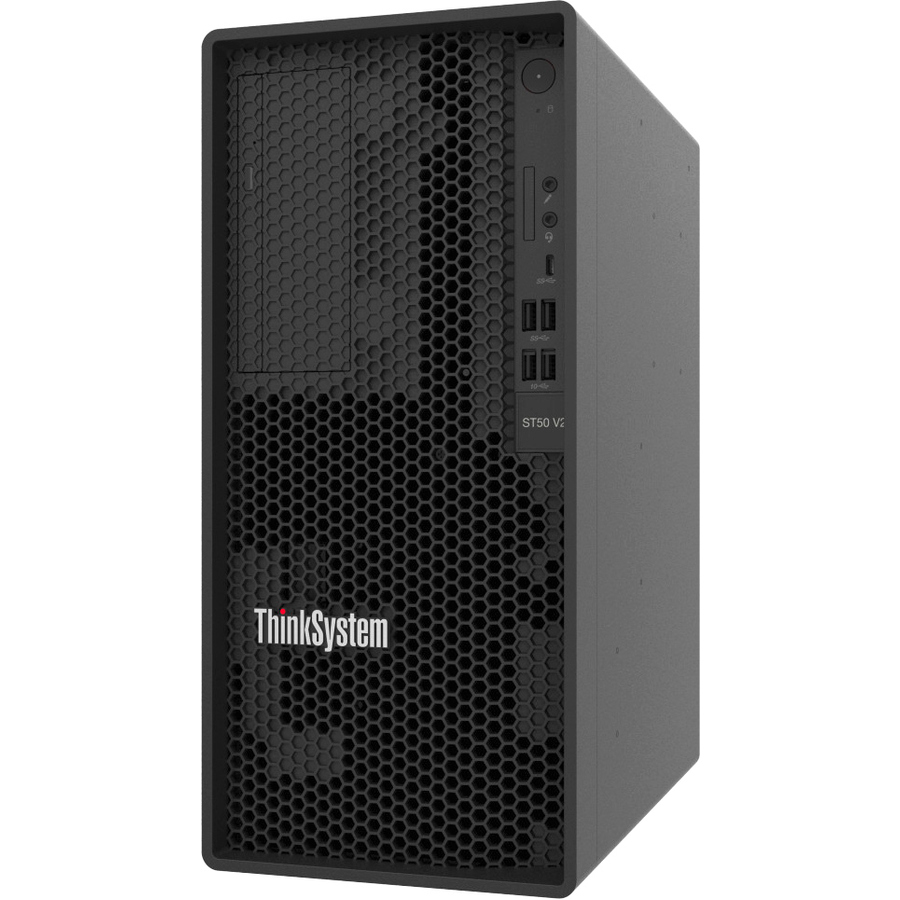

The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
This product guide provides essential presales information to understand the ThinkSystem ST50 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V2 and consider its use in IT solutions.
- 1 processors supported for optimal performance and maximum reliability in mission-critical server environments
- With 16 GB memory, users can multitask between applications smoothly, preserving responsiveness and efficiency
- 1 x 300 W power supply unit (PSU) meets system power demands for stable and uninterrupted operations
- Intel Xeon 3.10 GHz processor provides enterprise-grade performance with built-in security and remote management capabilities
- Tower form factor is cost-effective and highly configurable, making it suitable for growing businesses with evolving needs
- RAID provides redundancy to safeguard data during drive failures, ensuring maximum dependability and uninterrupted operations
- TruDDR4 memory technology enables efficient data movement across CPU cycles, improving throughput for demanding server workloads
- Gigabit Ethernet is ideal for frequent large file transfers, such as backups and replication, ensuring smooth and efficient operations
- 1 Network (RJ-45) Ports eliminate the need for additional wiri
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| CPU / Processor | |
|---|---|
| Processor Type | Xeon |
| Processor Model | E-2324G |
| Number of Processors Installed | 1 |
| Number of Processors Supported | 1 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 3.10 GHz |
| Cache | 8 MB |
| GPU / Graphics | |
|---|---|
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Number of Occupied Memory Slo | 1 |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 4 |
| Error Checking | ECC |
| Signal Processing | Unregistered (Unbuffered) |
| Maximum Memory Supported | 128 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| Hot Swappable Bays | No |
| Power & Battery | |
|---|---|
| Number of Power Supplies Supp | 1 |
| Number of Power Supplies Inst | 1 |
| Hot Swappable Power Supply | No |
| Plug/Connector Type | C13 |
| Input Voltage | 230 V AC |
| Power Source | Power Supply |
| Maximum Power Supply Wattage | 300 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 9 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | C256 |
| Remote Management | Yes |
| Remote Management Controller | XClarity |
| Controller Type | Serial ATA/600 |
| Manufacturer | Lenovo Group Limited |
| Expansion Slots | |
|---|---|
| PCI Express x1 (Gen 3.x) Slots | 1 |
| PCI Express Details | Slot 3: PCIe 3.0 x4 (physical connector is x16) FHHL |
| Total Number of Expansion Slots | 3 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 4 |
| Number of Internal 2.5" Bays | 1 |
| Number of 3.5" Bays | 2 |
| Number of External 5.25" Bays | 1 |
| Number of SFF Bays | 1 |
| Number of LFF Bays | 2 |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | China Energy Conservation Program (CECP) |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental Labeling Program (CELP) |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
