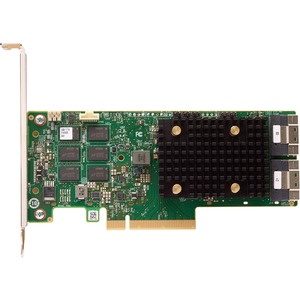

The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
- SAS Controller offers maximum storage productivity with added dependability
- 12Gb/s SAS controller type for maximum storage expansion efficiency and optimal usability
- 0 RAID level for easy, convenient configuration and better fault tolerance and redundancy
- Server device support for dependable storage expansion with optimal data transfer speed
- Windows Server 2016 OS support offers higher security with increased encryption options to better accommodate your needs
- The PCI Express 4.0 x8 interface provides smooth data transfer and outstanding performance
- Flash Backed Cache data backup type effectively restores and saves your valuable data in case of system damage
- 4 GB cache memory for convenient and quick access to the information to ensure maximum productivity
- Plug-in Card form factor allows hassle-free and easy usage with increased efficiency
- SAS Controller provides a larger storage expansion base capacity for your PC
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| CPU / Processor | |
|---|---|
| Cache Memory | 4 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| Data Backup Type | Flash Backed Cache |
| RAID Levels | JBOD |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Controller Type | 12Gb/s SAS |
| Manufacturer | Lenovo Group Limited |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 4.0 x8 |
| SAS Connector Details | Two x8 SFF-8654 |
| Number of SAS Ports (Internal) | 16 |
| Total Number of SAS Ports | 16 |
