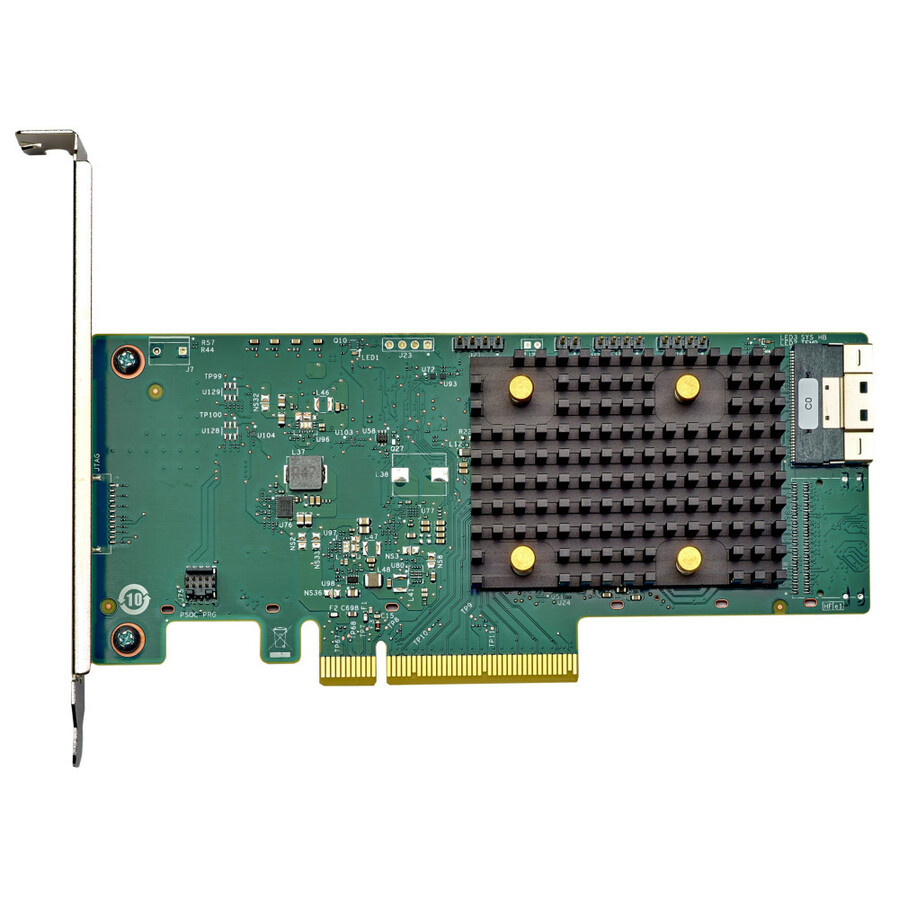

The ThinkSystem RAID 540 PCIe Gen4 12Gb Adapters are an entry-level 12 Gb SAS/SATA family of internal RAID adapters that offer a cost-effective RAID solution for small to medium business customers. These cacheless adapters support RAID levels 0, 1 and 10, and include an extensive list of RAS and management features.
- SAS Controller offers maximum storage efficiency and convenience
- 12Gb/s SAS controller type allows safe and productive storage expandability with maximum reliability
- 0 RAID level for faster, dependable read and write performance for maximum storage productivity
- Server device support for dependable storage expansion with optimal data transfer speed
- Windows Server 2016 OS support has improved security features for better reliance
- The PCI Express 4.0 x8 interface provides smooth data transfer and outstanding performance
- No cache memory makes data and information immediately available for your convenience to ensure maximum efficiency
- Plug-in Card form factor allows hassle-free and easy usage with increased efficiency
- SAS Controller provides an affordable storage expansion solution for your PC
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| CPU / Processor | |
|---|---|
| Cache Memory | No |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | JBOD |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Controller Type | 12Gb/s SAS |
| Manufacturer | Lenovo Group Limited |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 4.0 x8 |
| SAS Connector Details | One x8 SFF-8654 |
| Number of SAS Ports (Internal) | 8 |
| Total Number of SAS Ports | 8 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
