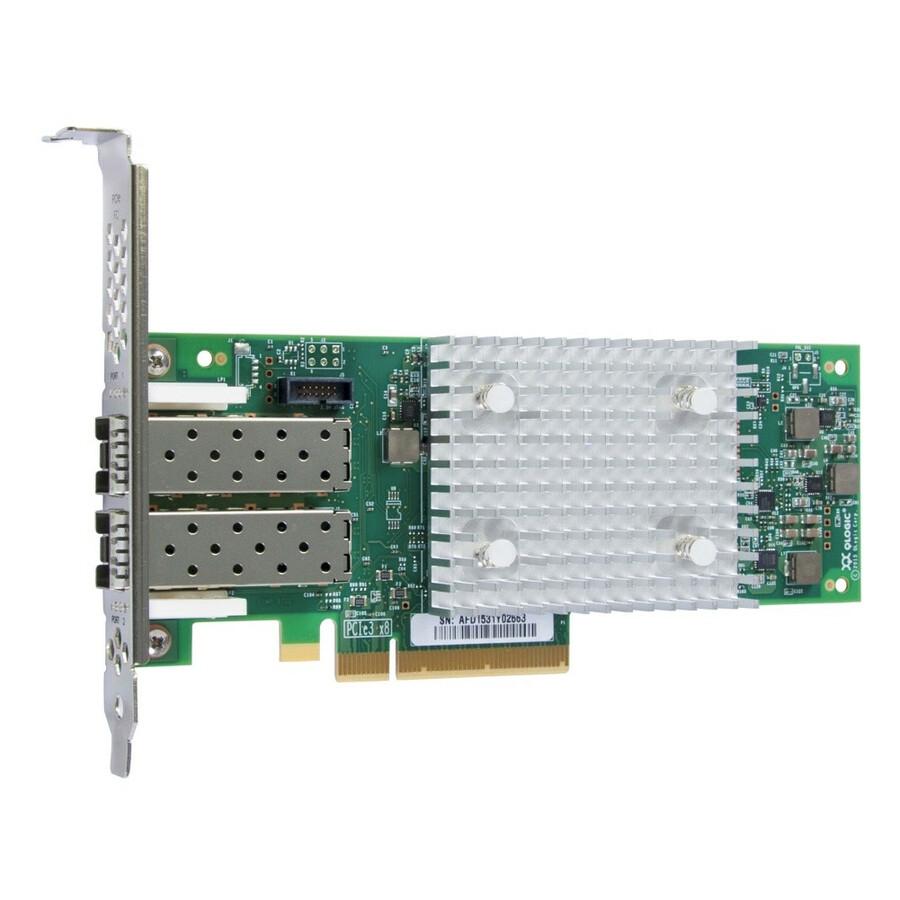

The QLogic 32 Gb Fibre Channel (FC) 1-port and 2-port Host Bus Adapters (HBAs) are Generation 6 (Gen 6) FC adapters for Lenovo ThinkSystem servers. These adapters are based on Cavium technology and offer industry leading native FC performance with extremely low CPU usage with full hardware offloads. With performance of up to 1.3 million I/O operations per second (IOPS), these adapters can be used to support all-flash arrays (AFAs) -- Fibre Channel storage systems comprised completely of high-speed solid-state drives.
Powerful management tools automate and simplify SAN provisioning to help reduce cost and complexity, while the unmatched 32 Gbps performance eliminates potential I/O bottlenecks in today's powerful multiprocessor, multicore servers.
- Fiber channel host bus adapter - Provides excessive data integrity by guaranteeing overlapping protection domains on both; the control and data paths
- Fibre Channel 1-port(s) - Perfect solution for enterprise and mixed-OS environments
- PCI Express 3.0 x8 interface provides enhanced bandwidth for the quick access of data by the operating system and applications
- The data speed of 32 Gbit/s maximizes system performance and saves time during critical tasks
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| Networking & Connectivity | |
|---|---|
| Total Number of Fibre Channel | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| General Features | |
|---|---|
| Data Transfer Rate | 32 Gbit/s |
| Manufacturer | Lenovo Group Limited |
| Expansion Slots | |
|---|---|
| Expansion Slot Type | SFP+ |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 3.0 x8 |
