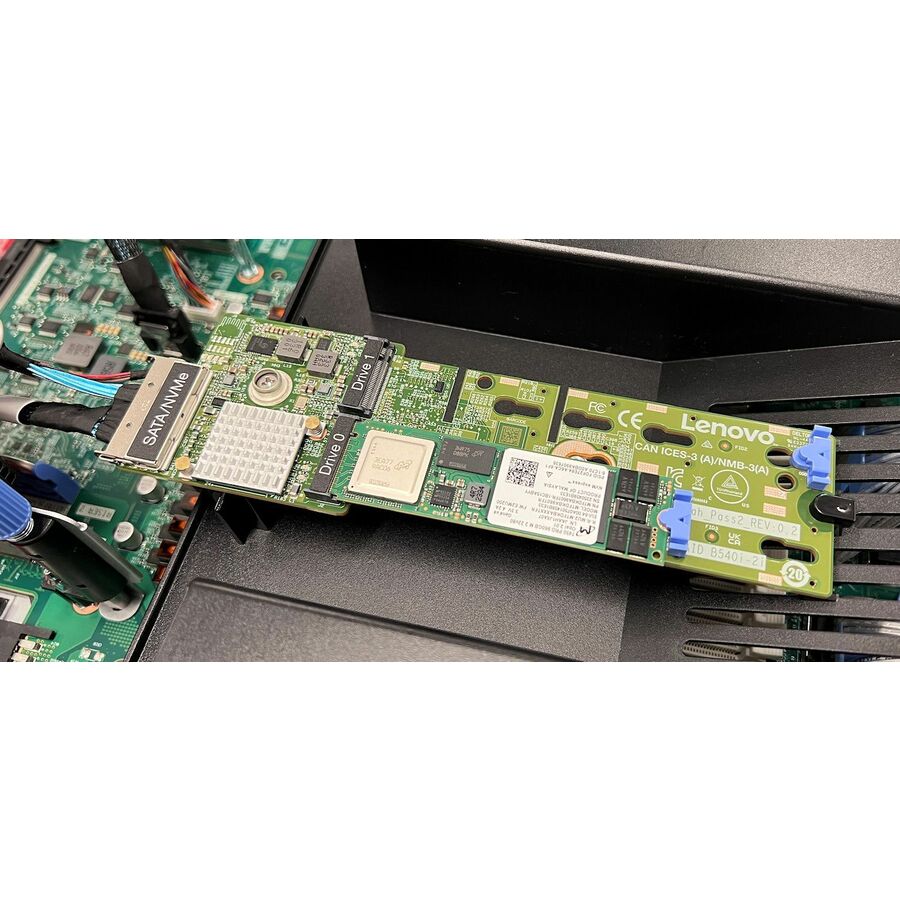

M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution. Lenovo ThinkSystem servers support M.2 drives either with the addition of a supported M.2 adapter or module, or directly on the system board.
- Supports one or two M.2 drives, either SATA or NVMe
- Support 42mm, 60mm, 80mm and 110mm drive form factors (2242, 2260, 2280 and 22110)
- RAID support via an onboard Broadcom SAS3808N RAID Controller
- With 1 drive, supports JBOD
- With 2 drives, supports 2-drive RAID-0, 2-drive RAID-1, or JBOD
- PCIe 4.0 x2 host interface; PCIe 4.0 x1 connection to each drive
- Management and configuration support via UEFI and OS-based tools
- Supports monitoring and reporting of events and temperature
- Firmware update via Lenovo firmware update tools
- Supports SED drive encryption
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| Storage | |
|---|---|
| Number of SATA Ports (Interna | 2 |
| RAID Supported | Yes |
| RAID Levels | JBOD |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Controller Type | NVMe |
| Manufacturer | Lenovo Group Limited |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Total Number of SATA Ports | 2 |
| Host Interface | PCI Express 4.0 x2 |
