Abstract

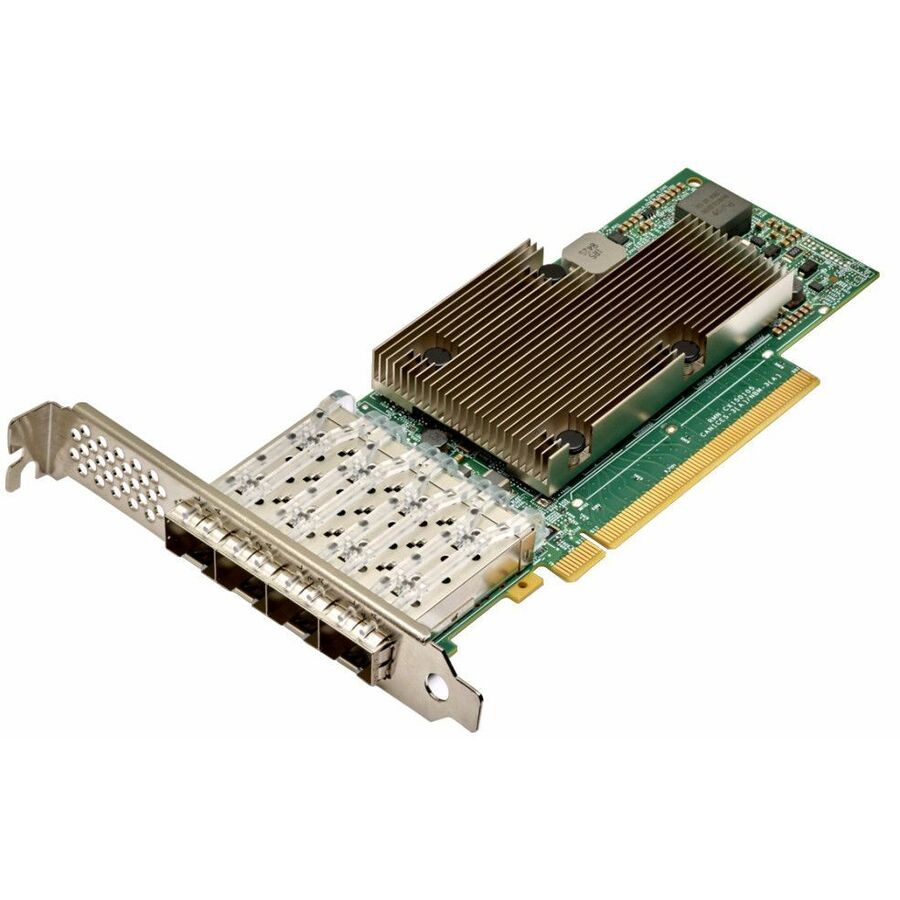

The ThinkSystem Broadcom 57504 10/25GbE SFP28 4-port adapters are high-performance low-power 25 Gb Ethernet adapters with a PCIe 4.0 host interface that offers TruFlow intelligent flow processing and supports advanced networking technologies such as VXLAN, NVGRE, Geneve, RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions. The adapters are available in both PCIe or OCP 3.0 form factors.
This product guide provides essential presales information to understand the adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Broadcom 25 GbE network adapters and consider their use in IT solutions.
- 25Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
- PCI Express 4.0 x16 host interface for reliable data transfer and enhanced performance
- With quad ports on a single card, save valuable expansion slots on your system for other purposes
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Broadcom |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Chipset Manufacturer | Broadcom |
| Chipset Model | 57504 |
| Maximum Data Transfer Rate | 25 Gbit/s |
| Manufacturer | Lenovo Group Limited |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP28 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 4 |
| Host Interface | PCI Express 4.0 x16 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Minimum Operating Humidity (N | 5% |
| Maximum Operating Humidity (N | 90% |
