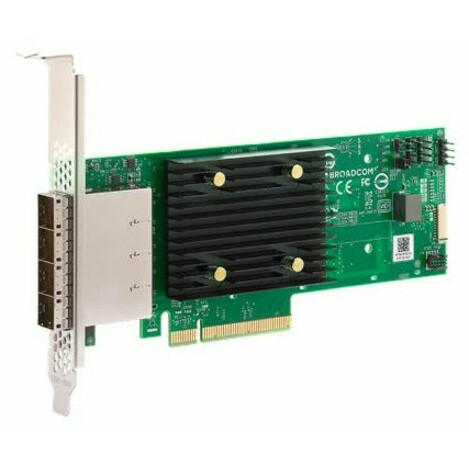

The Lenovo ThinkSystem 440-16e SAS/SATA 12Gb HBA is a high performance PCIe 4.0 host bus adapters for external storage connectivity in ThinkSystem servers. The adapter provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS.
- High performance architecture with very deep queue depth
- Support for external storage systems and tape backup units
- Four external x4 HD Mini-SAS connectors (SFF-8644)
- Up to 12 Gbps throughput per port: Supports 12, 6, or 3 Gbps SAS speeds, Supports 6 or 3 Gbps SATA speeds
- Connectivity for up to 1024 external SAS or SATA drives
- Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs
- 16x 12Gbps SAS/SATA ports for connectivity to 16x internal drives
- PCI low profile, half-length form factor
- 12Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3816 IOC design
- PCIe 4.0 x8 host interface
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| CPU / Processor | |
|---|---|
| Cache Memory | No |
| Storage | |
|---|---|
| RAID Supported | No |
| RAID Levels | JBOD |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Controller Type | 12Gb/s SAS |
| Manufacturer | Lenovo Group Limited |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 4.0 x8 |
| SAS Connector Details | Four external x4 HD Mini-SAS connectors (SFF-8644) |
| Number of SAS Ports (External) | 4 |
| Total Number of SAS Ports | 4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
