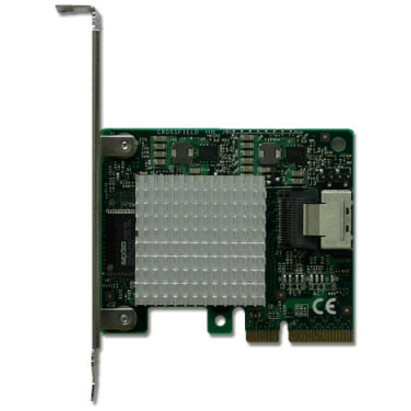

The ServeRAID H1110 SAS/SATA Controller for IBM System x offers a low-cost enterprise-grade RAID solution for internal HDDs and integrates popular SAS technology into an organization's storage infrastructure. Ideal for supporting four HDDs in a space-constrained server configuration, the ServeRAID H1110 comes in a standard PCIe form factor, enabling it to support a wide array of servers. It features a PCI Express x4 Gen 2 host interface, MD0 form factor, and robust hardware RAID processing engine based on the LSI SAS2004 RAID on Chip (ROC) controller.
- SAS Controller offers maximum storage productivity with added dependability
- 6Gb/s SAS controller type allows safe and productive storage expandability with maximum reliability
- 0 RAID level for better cost-effectiveness and easy implementation with minimal effort required
- The PCI Express 2.0 x4 interface provides smooth data transfer and outstanding performance
- Plug-in Card form factor allows hassle-free and easy usage with increased efficiency
- SAS Controller has a non-volatile memory which is beneficial for your PC storage expansion needs
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| Storage | |
|---|---|
| Number of SATA Ports (Interna | 4 |
| RAID Supported | Yes |
| RAID Levels | 10 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Controller Type | Serial ATA/600 |
| Manufacturer | Lenovo Group Limited |
| Misc Ports | |
|---|---|
| Total Number of SATA Ports | 4 |
| Host Interface | PCI Express 2.0 x4 |
| Number of SAS Ports (Internal) | 4 |
| Total Number of SAS Ports | 4 |
| Brand | Lenovo Group Limited |
| UPC/GTIN | 883436138697 |
| MPN | 81Y4492 |
| Unit Count | 1 Units |
| Warranty | 1 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
