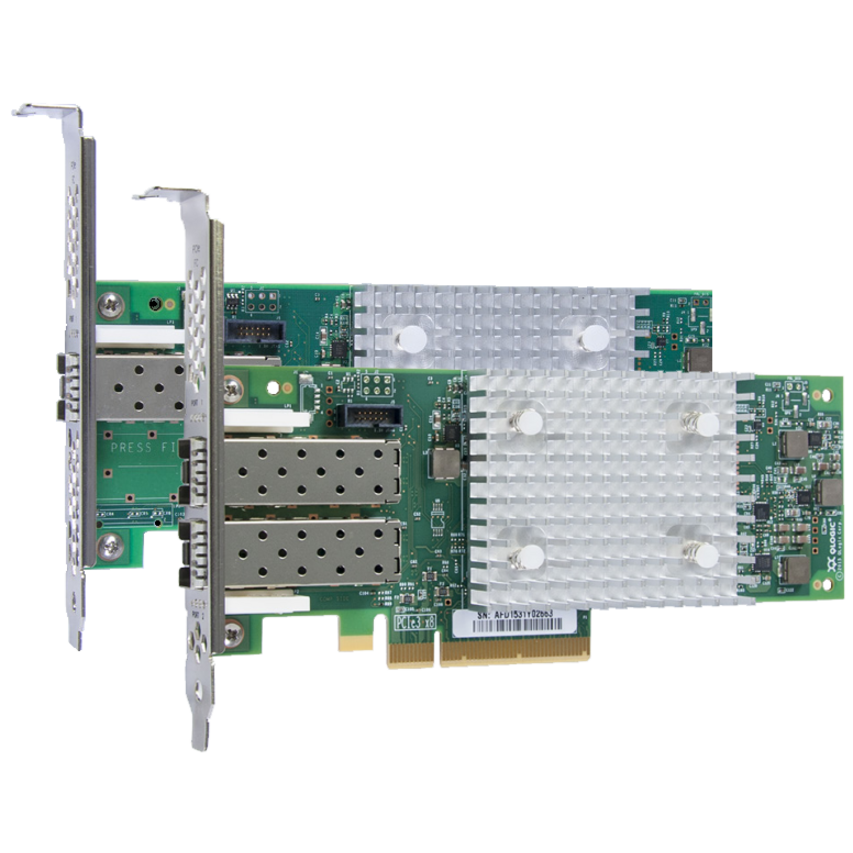

The QLogic Enhanced Generation 5 (Gen 5) 16 Gb Fibre Channel (FC) Single and Dual-port Host Bus Adapters (HBAs) for Lenovo ThinkSystem and System x servers offer industry leading native FC performance with extremely low CPU usage with full hardware offloads.
Enhanced Gen 5 FC technology provides advanced storage networking features capable of supporting the most demanding virtualized and private cloud environments, while fully leveraging the capabilities of high-performance 16 Gb FC (16GFC) and all-flash arrays (AFAs). Powerful management tools automate and simplify SAN provisioning to help reduce cost and complexity, while the unmatched 16 Gbps performance eliminates potential I/O bottlenecks in today's powerful multiprocessor, multicore servers.
- Link cable beacon (LCB) enables administrators to visually identify both ends of a physical link by flashing HBA's LEDs, simplifying identification of the connection peers within server racks without tracing the cable.
- Read diagnostic parameters (RDP) feature provides detailed port, media, and optics diagnostics to easily discover and diagnose link-related errors and degrading conditions on any N_Port-to-F_Port link.
- Using the Brocade ClearLink diagnostic port (D_Port) available on the Brocade Gen 5 switches, administrators can quickly run automated diagnostic tests to assess the health of links and fabric components.
- Fabric-assigned port worldwide name (FA-WWN) and fabric-based boot LUN discovery (F-BLD) pre-provisioning services allow servers to be quickly deployed, replaced, and moved across the SAN; the creation of zones, LUNs, and other services can be completed before the servers arrive on site.
- Support for Message Signaled Interrupts eXtended (MSI-X) improves host utilization and enhances application p
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| Networking & Connectivity | |
|---|---|
| Total Number of Fibre Channel | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| General Features | |
|---|---|
| Data Transfer Rate | 16 Gbit/s |
| Manufacturer | Lenovo Group Limited |
| Expansion Slots | |
|---|---|
| Expansion Slot Type | SFP+ |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 3.0 x8 |
