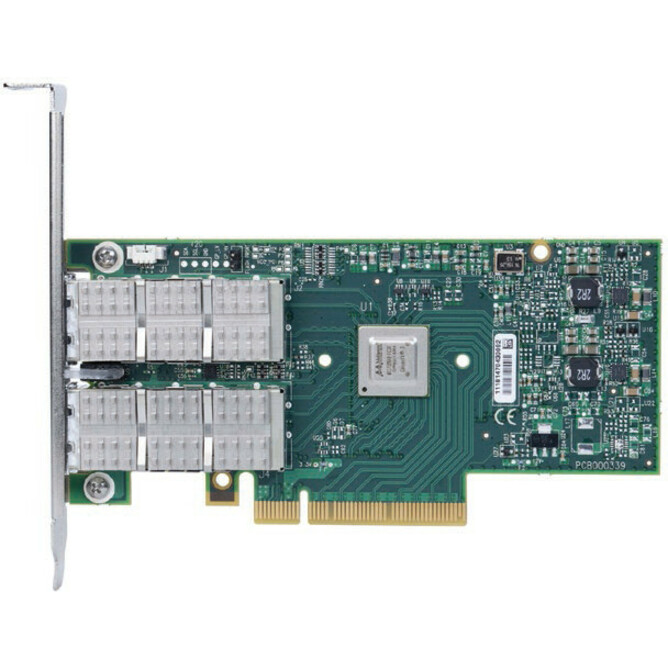

High-performance computing (HPC) solutions require high-bandwidth, low- latency components with CPU offloads to get the highest server efficiency and application productivity. The Mellanox ConnectX-3 FDR VPI IB/E and Dual Port 10 Gigabit Ethernet InfiniBand adapters for IBM system x deliver the I/O performance that meets these requirements.
InfiniBand ConnectX-3 delivers low latency, high bandwidth, and computing efficiency for performance-driven server and storage clustering applications. Efficient computing is achieved by offloading from the CPU routine activities, which makes more processor power available for the application. Network protocol processing and data movement impacts, such as InfiniBand RDMA and Send/Receive semantics, are completed in the adapter without CPU intervention. The ConnectX-3 advanced acceleration technology enables higher cluster efficiency and scalability of up to tens of thousands of nodes.
- 10Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
- This 4000MB/s bandwidth adapter is ideal for PCs with PCI Express x8 slots, ensuring top level network connectivity for your desktops
- This quad ports network adapter is designed to meet the multi-port network connectivity needs of today's data centered environments demanding virtualization, converged infrastructure, and power reduction
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-X technology get up to 10Gbps data transfer rate over the supported network cable
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| Networking & Connectivity | |
|---|---|
| InfiniBand | Yes |
| Number of QSFP Slots | 2 |
| Network Technology | 10GBase-X |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| General Features | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | QSFP |
| Misc Ports | |
|---|---|
| Total Number of Ports | 4 |
| Host Interface | PCI Express x8 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
