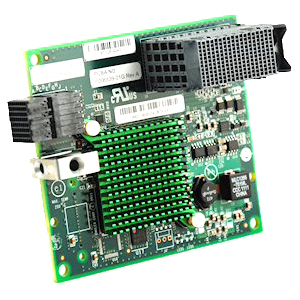

The network architecture on the IBM Flex System platform has been specifically designed to address network challenges, giving you a very scalable way to integrate, optimize and automate your data center. The Flex System™ FC3052 2-port 8Gb Fibre Channel Adapter enables high speed access for Flex System compute nodes to an external storage area network (SAN). This adapter is based on the proven Emulex Fibre Channel stack, and works with any of the 8 Gb or 16 Gb IBM Flex System Fibre Channel switch and pass-thru modules.
- Fibre channel host bus adapter - Meets the business prerequisites of the enterprise data center
- Fibre Channel 2-port(s) are built for industry-leading performance, providing the quickest data throughput available for today's demanding computing environments and applications
- With increased scalability, PCI Express 2.0 delivers up to 16GB/s of concurrent bandwidth
- The data speed of 8 Gbit/s maximizes system performance and saves time during critical tasks
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| Power & Battery | |
|---|---|
| Topology | Point-to-Point |
| Networking & Connectivity | |
|---|---|
| Total Number of Fibre Channel | 2 |
| Fibre Channel Class Supported | Class 3 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Data Transfer Rate | 8 Gbit/s |
| Manufacturer | Lenovo Group Limited |
| Misc Ports | |
|---|---|
| Fiber Channel Port Type | F_Port |
| Host Interface | PCI Express 2.0 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
