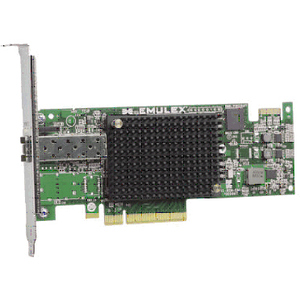

Exceptional price/performance, advanced management functionality that can shave days off installing and managing adapters, coupled with up to 3x better IOPS performance per watt, make IBM branded 16G Fibre Channel (16GFC) host bus adapters (HBAs) the clear choice for IBM System x servers. IBM 16GFC HBAs were designed to support the largest virtualized, cloud and mission critical database environments. The single-channel IBM 81Y1655 and dual channel IBM 81Y1662 feature the Emulex bullet-proof driver-stack, backward compatibility to 4 and 8G Fibre Channel HBAs and rock-solid reliability with a heritage that spans back to the first generation of Fibre Channel adapters to today's 16GFC adapters. Emulex is trusted by data centers the world-over, with more than 11 million HBA ports shipped and installed to date.
- Fibre channel host bus adapter - Delivers improved security, quality of service (QoS), and empowers dynamic provisioning
- Can connect up to 1 fiber channel peripherals
- This 4000MB/s bandwidth adapter is ideal for PCs with PCI Express 2.0 x8 slots, ensuring top level network connectivity for your desktops
- With the data speed of 16 Gbit/s, get a quick response while updating or transferring files
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| Networking & Connectivity | |
|---|---|
| Total Number of Fibre Channel | 1 |
| Fibre Channel Class Supported | Class 3 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Thickness | 1" |
| Card Height | Low-profile |
| General Features | |
|---|---|
| Data Transfer Rate | 16 Gbit/s |
| Manufacturer | Lenovo Group Limited |
| Expansion Slots | |
|---|---|
| Expansion Slot Type | SFP+ |
| Misc Ports | |
|---|---|
| Fiber Channel Port Type | N_Port |
| Host Interface | PCI Express 2.0 x8 |
| Number of LC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
