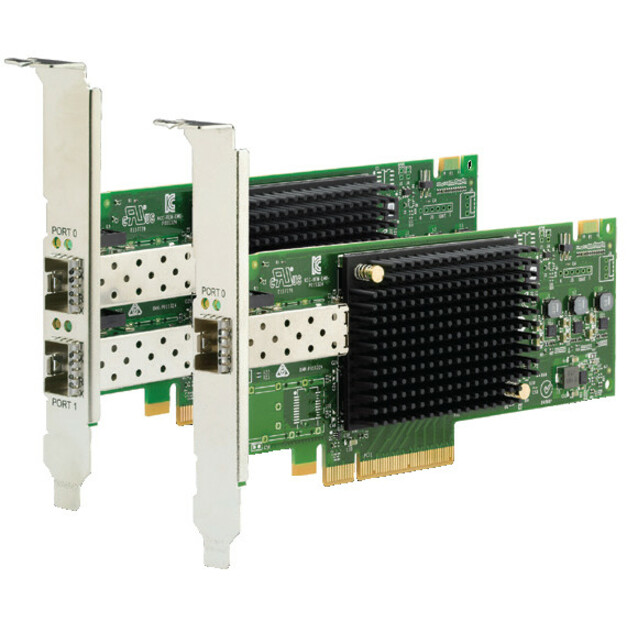

The Emulex 16 Gb Generation 6 Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution when requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications.
This product guide describes the Emulex HBAs and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.
- T10-PI data integrity with high performance offload provides end-to-end data corruption protection.
- Support forward error correction (FEC), a new Gen 6 standard feature that provides enhanced data reliability and performance by automatically detecting and recovering from bit errors.
- End-to-end data protection with hardware parity, CRC, ECC, and other advanced error checking and correcting algorithms, which ensures that data is safe from corruption.
- GreenState power efficiency reduces data center power consumption and associated operational expenses by delivering exceptional power to port ratios.
- The Emulex OneCommand Manager enterprise class management application features a multiprotocol and cross-platform architecture that provides centralized management of all Emulex HBAs. VMware vCenter plug-in provides OneCommand support within a VMware environment.
- vScale performance and scalability: Multicore ASIC engine with eight cores supports 255 VFs, 1024 MSI-X, and 16127 logins/open exchanges for maximum VM densi
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| Networking & Connectivity | |
|---|---|
| Total Number of Fibre Channel | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| General Features | |
|---|---|
| Data Transfer Rate | 16 Gbit/s |
| Manufacturer | Lenovo Group Limited |
| Expansion Slots | |
|---|---|
| Expansion Slot Type | SFP+ |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 3.0 x8 |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 62.5/125 µm |
| Fiber Mode Supported | Multi-mode |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
