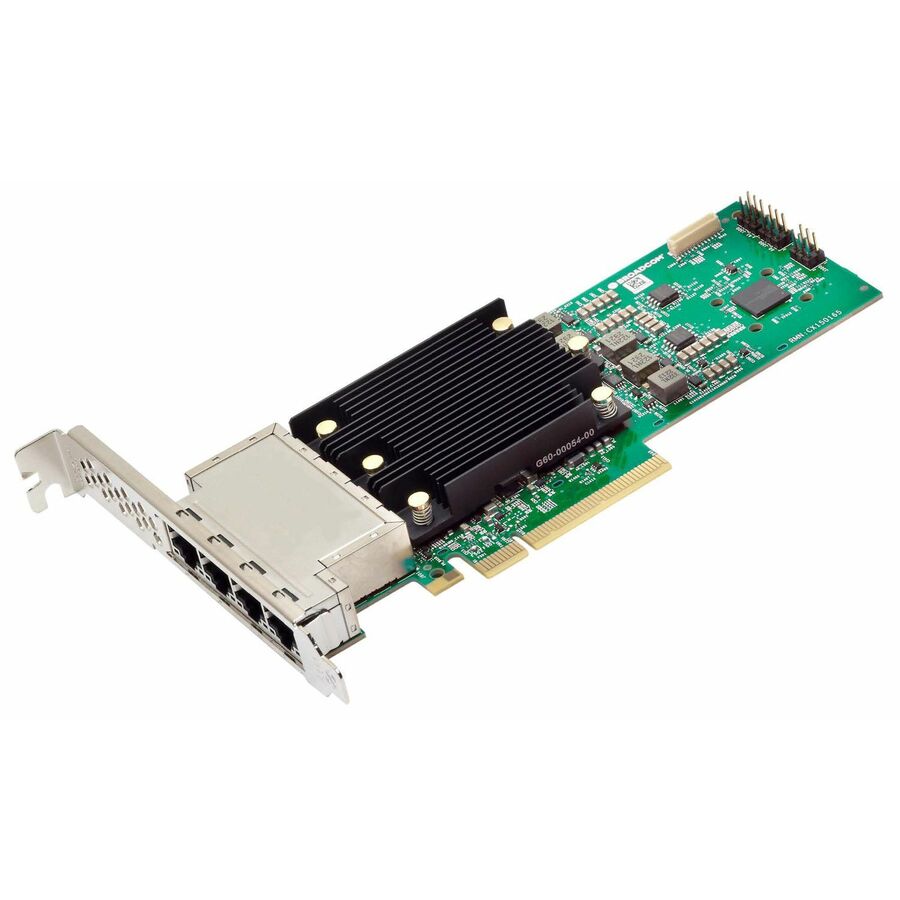

The ThinkSystem Broadcom 57412 10GBASE-T Ethernet Adapters are four port 10 Gb Ethernet adapters that supports 10GBASE-T and 1000BASE-T Ethernet on Category 6 twisted-pair cables. They support networking virtualization technologies such as SR-IOV, VXLAN, and NVGRE. The 57412 10GBASE-T adapters are available in PCIe and OCP form factors.
- 10Gigabit Ethernet Card guarantees a replacement networking interface to client, server or workstation
- Enjoy superfast data transfer of up to 8000 MB/s with PCI Express 3.0 x8 card, between the network card and motherboards
- This quad ports network adapter is designed to meet the multi-port network connectivity needs of today's data centered environments demanding virtualization, converged infrastructure, and power reduction
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Size / Dimensions | |
|---|---|
| Bracket Height | full-height , low-profile |
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Chipset Manufacturer | Broadcom |
| Chipset Model | BCM57412 |
| Manufacturer | Lenovo Group Limited |
| Misc Ports | |
|---|---|
| Total Number of Ports | 4 |
| Host Interface | PCI Express 3.0 x8 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Minimum Operating Humidity (N | 5% |
| Maximum Operating Humidity (N | 95% |
