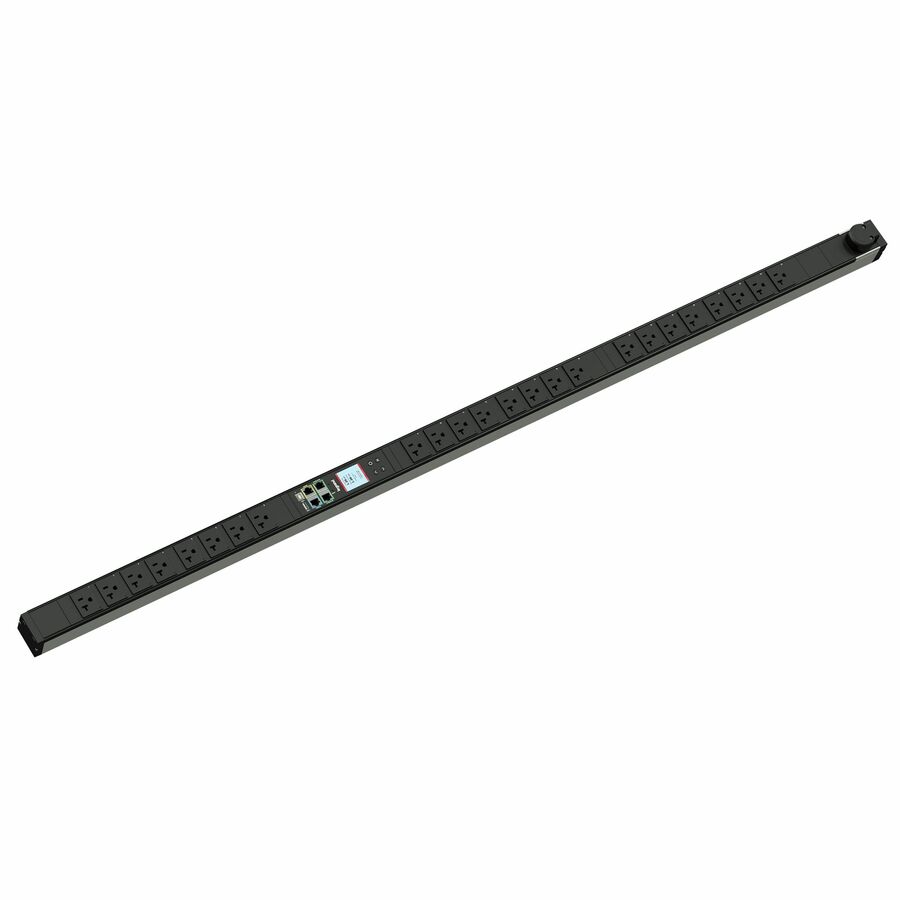

The Middle Atlantic LP-61200 is a sophisticated Network Switched PDU designed to enhance power management and monitoring capabilities. It enables individual outlet power cycling, power sequencing, and load monitoring, which can be accessed both locally and remotely. The single portal view provides comprehensive visibility and control over power usage and available capacity. This PDU is TAA Compliant and operates at 120V with a 16A capacity. It features 24 outlets (5-20R) and offers versatile mounting options with a Vertical Button Mount and Horizontal/Vertical Mounting Bracket.
- Provide circuit protection and easy configuration for trouble-free access
- With switched PDU, remotely monitor, connect or disconnect data center loads
- NEMA 5-20R receptacle type to ensure maximum dependability and optimal performance
- NEMA L5-20P plug/connector type for better, dependable connectivity and desired power output
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| PDU Type | Switched |
| Receptacle Detail | 24 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA L5-20P |
| Input Current | 16 A |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
