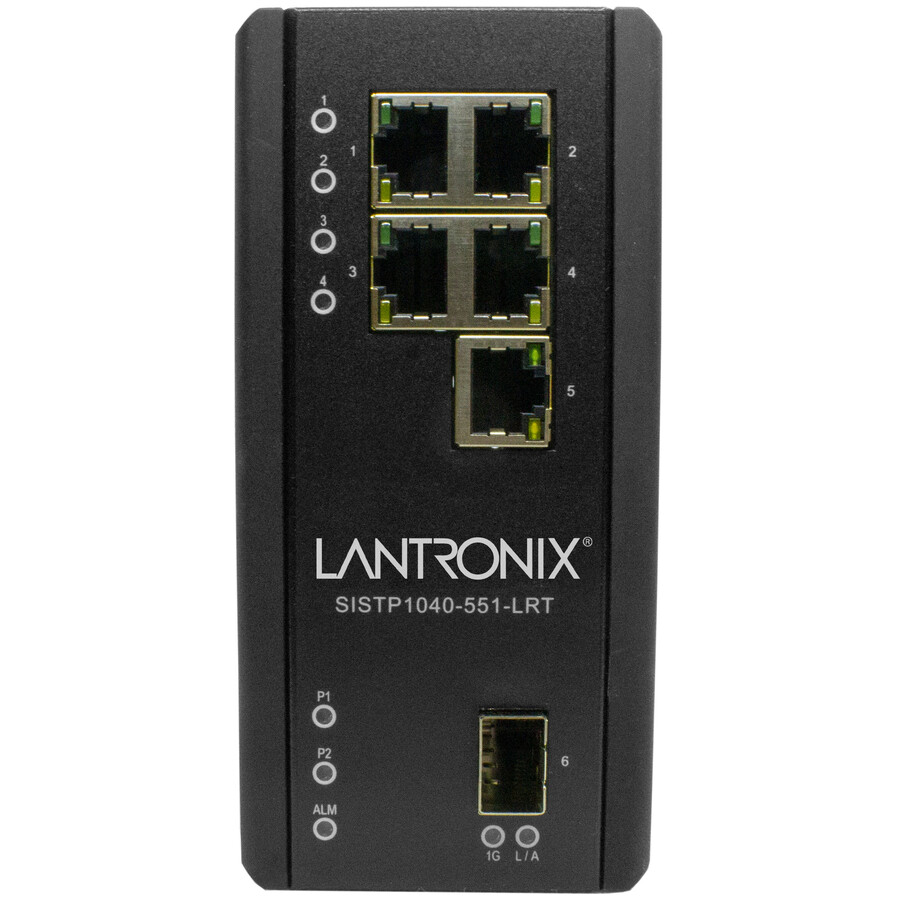

This switch is an unmanaged full Gigabit Ethernet hardened PoE++ switch that complies with IEEE 802.3bt, IEEE 802.3at and IEEE 802.3af. The switch has (4) 10/100/1000Base-T PoE++ ports, (1) 10/100/1000Base-T port with (1) 100/1000 dual speed SFP slot. It can deliver up to 90 Watts on each PoE++ port simultaneously and also supports Power over HDBaseT (PoH) mode (95 Watts) when enabled by DIP switch. The SISTP1040-551-LRT can be used to power PoE lighting, high powered IP cameras and digital signage. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C.
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- DIN Rail Mountable form factor for added reliability and dependability
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
| Brand | |
|---|---|
| Brand | Lantronix |
| Power & Battery | |
|---|---|
| PoE Budget | 360 W |
| Input Voltage | 230 V AC |
| Power Source | AC/DC |
| Power Consumption | 5 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100/1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
Lantronix Unmanaged Hardened Gigabit Ethernet PoE++ Switch - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 2 Layer Supported - Modular - 5 W Power Consumption - 360 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - DIN Rail Mountable, Wall Mountable
