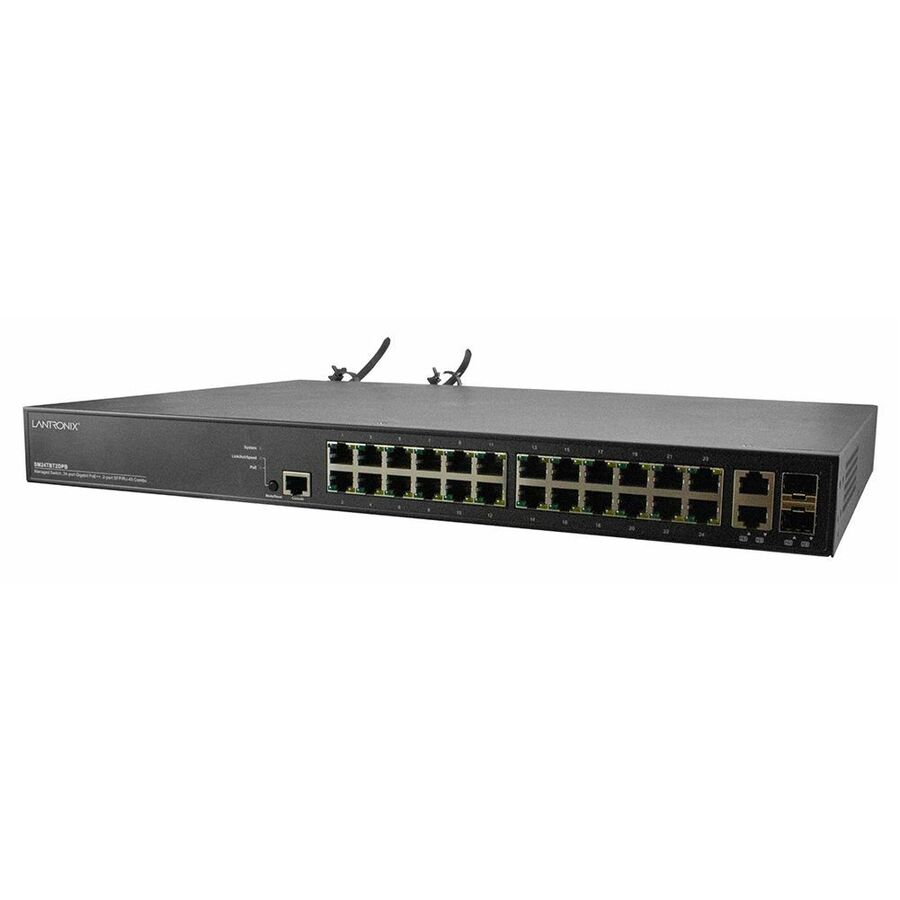

Lantronix SM24TBT2DPB Ethernet Switch

$ 2,398.99 $ 2,398.99
$ 2,398.99

$ 2,398.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Power Supplies Supp
  • Network Technology
  • Manageable
  • Features
  • Modular
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Number of SFP Slots
  • Shared SFP Slot
  • Port/Expansion Slot Details
  • Form Factor
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • Media Type Supported
  • TAA Compliant
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

(24) 10/100/1000Base-T Ports + (2) 100/1000Base-X SFP/RJ-45 Combo Ports

This switch is a high performance Layer 2 managed switch with 52 Gbps switching capacity. Itprovides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) additional100/1000Mbps dual speed SFP/RJ-45 combo ports. The SM24TBT2DPB complies with the latestIEEE 802.3bt PoE++ standard and supplies up to 90 Watts per port. It can provide full PoE++ outputon all 24 ports when equipped with the dual hot-swappable PS-ACDC-1200 power supplies. TheSM24TBT2DPB can be powered by low-line and high-line AC or DC power and Digital Electricity*,making it ideal for use in a wide variety of building applications.

  • Hot-swappable dual power supply modules
  • Supports IPv4/IPv6 dual protocol stack
  • Supports Jumbo Frame up to 9K bytes
  • Authentication - RADIUS, TACACS+
  • Security - Supports SSH v1/SSH v2/SSL
  • Port based or tagged (IEEE 802.1Q) VLAN, MAC based, Management VLAN and Private VLAN Edge
  • DHCP Relay, DHCP Server
  • L2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACL
  • LLDP (Link Layer Discovery Protocol)
  • IEEE 802.3az Energy Efficiency
  • IP Source Guard, Port Security
Brand
Brand Lantronix
Power & Battery
Number of Power Supplies Supp 1
Power Source Power Supply
Power Consumption 52 W
Networking & Connectivity
Network Technology 1000Base-X
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 26
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor Rack-mountable
Appearance
Modular Yes
General Features
Manageable Yes
Manufacturer Lantronix, Inc
Expansion Slots
Total Number of Expansion Slots 2.0
Expansion Slot Type SFP (mini-GBIC)
Number of SFP Slots 2
Shared SFP Slot Yes
Misc Ports
Port/Expansion Slot Details 2 x Gigabit Ethernet Combo (Ethernet/SFP)
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Compliance & Certification
TAA Compliant No
