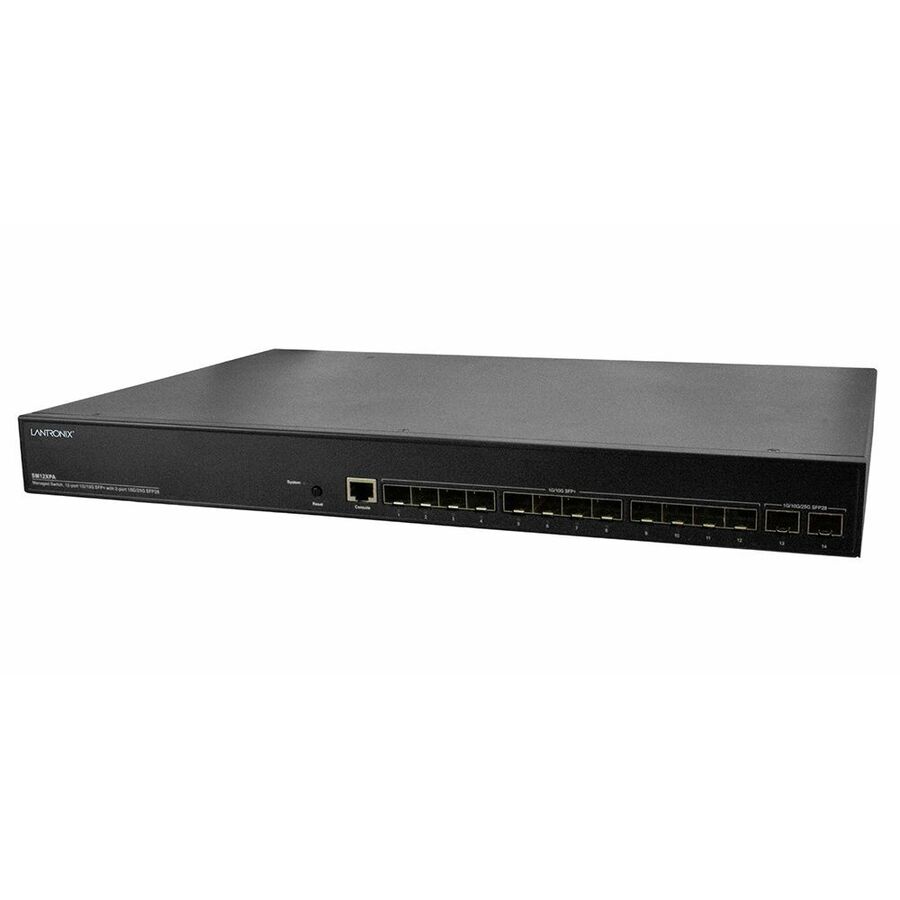

Lantronix SM12XPA Layer 3 Switch

$ 2,598.99 $ 2,598.99
$ 2,598.99

$ 2,598.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Power Supplies Supp
  • Network Technology
  • Manageable
  • Features
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Stack Port
  • Number of SFP Slots
  • Shared SFP Slot
  • Port/Expansion Slot Details
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • Media Type Supported
  • Input Voltage
  • Frequency
  • Environmentally Friendly
  • Environmental Compliance
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

Easier management and maintenance of end devices and networks

The SM12XPA Fiber Aggregation Switch is a managed Layer 3 (L3) Multi-Gigabit Ethernet fiber switch offering powerful Layer 2 and basic Layer 3 features for improved functionality.

Move More Data: Reduce Backbone Infrastructure

The SM12XPA switch provides 340 Gbps switching capacity with (12) 1G/10G SFP+ and (2) 1G/10G/25G SFP28 slots and (1) RJ-45 console port. It offers high performance and reliability for high bandwidth aggregation and access network applications. The 10G and 25G SFP links provide the necessary backbone capacity to meet the high traffic needs of modern connected access switches.

Rapid Network Conversion

High performance IP unicast routing using OSPF and RIP enables devices to dynamically learn and exchange routing information for rapid network convergence. This improves efficiency and productivity.

Smart Device Management

The embedded Device Managed System (DMS) software is easy to use and simplifies configuration, installation, and troubleshooting of devices in applications with high fiber density. The SM12XPA offers an improved user experience, and lowers operating and maintenance costs.

Security and Seamless Integration

A RESTful API is available for integrating and managing the switch through third-party tools. It also supports enhanced security features such as IP source guard and Access Control Lists to guard networks against unauthorized access.

  • Supports Jumbo Frame up to 10K bytes
  • Secondary hot-swappable AC power supply available (optional)
  • Layer 2 Switching
  • Spanning Tree (STP), Rapid Spanning Tree (RSTP), and Multiple Spanning Tree (MSTP)
  • Link Aggregation Control Protocol (LACP)
  • VLANs (supports up to 4K VLANs): Port based VLAN, IEEE 802.1Q tag-based VLAN, MAC-based VLAN, Management VLAN, Private VLAN Edge (PVE), Q-in-Q (double tag) VLAN, Voice VLAN, GARP VLAN Registration Protocol (GVRP)
  • DHCP Relay
  • IGMP v1.v2/v3 Snooping / IGMP Querier / IGMP Proxy
  • MLD v1/v2 Snooping
  • Layer 3 Switching
  • IPv4/IPv6 Static Routing, RIP v1/v2, OSPF v2
  • Security
  • SSH v1 and v2 / SSL
  • Authentication - RADIUS, TACACS+
  • IP Source Guard, Port Security
  • Storm Control
  • DHCP Snooping
  • L2/L3/L4 ACLs Support MAC, VLAN ID, or IP address, protocol, per port
  • Quality of Service
  • Quality of Service: Supports 8 hardware queues. Strict priority and WRR, Ingress policer, Egress shaping and per port rate control
  • Port based, IEEE 802.1p VLAN priority based , IPv4/IPv6/DSCP based and DiffServ classi
Brand
Brand Lantronix
Power & Battery
Number of Power Supplies Supp 1
Input Voltage 120 V AC
Power Source Power Supply
Networking & Connectivity
Network Technology 25GBase-X
Layer Supported 4
General Features
Manageable Yes
Frequency 60 Hz
Manufacturer Lantronix, Inc
Expansion Slots
Total Number of Expansion Slots 14
Expansion Slot Type SFP28
Number of SFP Slots 2
Shared SFP Slot No
Misc Ports
Stack Port No
Port/Expansion Slot Details 2 x 25 Gigabit Ethernet SFP28
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Compliance & Certification
Environmentally Friendly Yes
