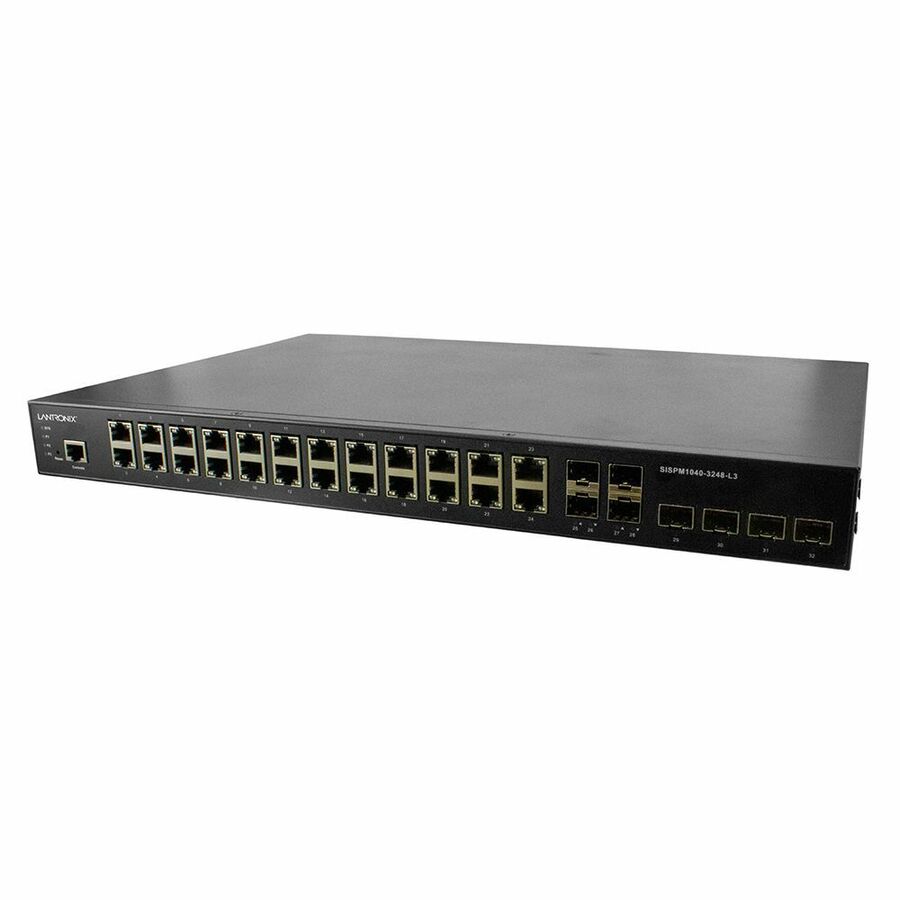

Lantronix SISPM1040-3000-L3 Layer 3 Switch

2,724.99 2,724.99
2,724.99

2,724.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Manageable
  • Modular
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Stack Port
  • Number of SFP Slots
  • Shared SFP Slot
  • Port/Expansion Slot Details
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Input Voltage
  • Environmentally Friendly
  • Environmental Compliance
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

(16) 10/100/1000Base-T PoE+ Ports + (4) 100/1000Base-X SFP Slots + (2) 1G/10GBase-X SFP+ Slots

(24) 10/100/1000Base-T PoE+ Ports + (4) 100/1000Base-X SFP Slots + (4) 1G/10GBase-X SFP+ Slots

The SISPM1040-3000-L3 Series managed Layer 3 (L3) hardened Gigabit Ethernet PoE switches offer powerfulLayer 2 and Layer 3 features and performance required to meet the demands of Smart City and Utility,Transportation, Security and Surveillance applications where performance and reliability across a wide range oftemperatures is required. The SISPM1040-3000-L3 Series are designed to support current and future Internet ofThings (IoT) applications with their non-blocking / wirespeed performance, wide operating temperature range of-40°C to 75°C for outdoor and indoor environments.

Device management is made simple with Lantronix ConsoleFlow™. The ConsoleFlow Cloud device managerprovides cloud-based control of the Lantronix SISPM1040-3000-L3 Series network switches. ConsoleFlowCloud provides a single pane of glass to securely deploy, monitor and manage Lantronix network switches andconnected IT equipment. ConsoleFlow Cloud features True Zero-Touch automation, simplifying onboardinglogistics and provisioning new devices while eliminating remote or on-site visits and reducing operational costs.In addition, the native mobile apps for iOS® or Android™ platforms provide users the freedom to monitor andremotely connect to any device while on the go.

  • IPv4/IPv6 Layer 3 Static Routing
  • RIP v1/v2, OSPF v2/v3 Dynamic Routing
  • Supports Jumbo Frame up to 10K bytes
  • Authentication - RADIUS, TACACS+
  • SSH v1/v2
  • DHCP Relay, DHCP Snooping, DHCP Server, DHCP Client
  • L2/L3/L4 ACLs Support MAC, VLAN ID, or IP address, protocol, per port
  • LACP (Link Aggregation Control Protocol)
  • LLDP (Link Layer Discovery Protocol)/CDP Aware
  • ITU-T G.8031 Ethernet Linear Protection Switching (ELPS)
  • ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
  • Rapid Ring for fast recovery
  • IEEE 802.3az Energy Efficiency
  • IP Source Guard, Port Security
  • Storm Control
  • Port Mirroring
  • SNMP Traps/Syslog/SMTP
Brand
Brand Lantronix
Power & Battery
PoE Budget 370 W
Input Voltage 230 V AC
Power Source DC
Power Consumption 15 W
Networking & Connectivity
Network Technology 100/1000Base-FX
Layer Supported 4
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 24
PoE (RJ-45) Port Yes
Appearance
Modular Yes
General Features
Manageable Yes
Manufacturer Lantronix, Inc
Expansion Slots
Total Number of Expansion Slots 8
Expansion Slot Type SFP (mini-GBIC)
Number of SFP Slots 4
Shared SFP Slot No
Misc Ports
Stack Port No
Port/Expansion Slot Details 4 x 10 Gigabit Ethernet SFP+
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
Environmentally Friendly Yes
