Lantronix S4110-4848 Transceiver/Media Converter

$ 1,169.99 $ 1,169.99
$ 1,169.99

$ 1,169.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Number of SFP+ Slots
  • Form Factor
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Media Type Supported
  • Input Voltage
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • NDAA Compliant
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

Stand-alone Fiber to Fiber Media Converter

SFP+ to SFP+ for Data Rates from 1 Gbps to 11.5 Gbps

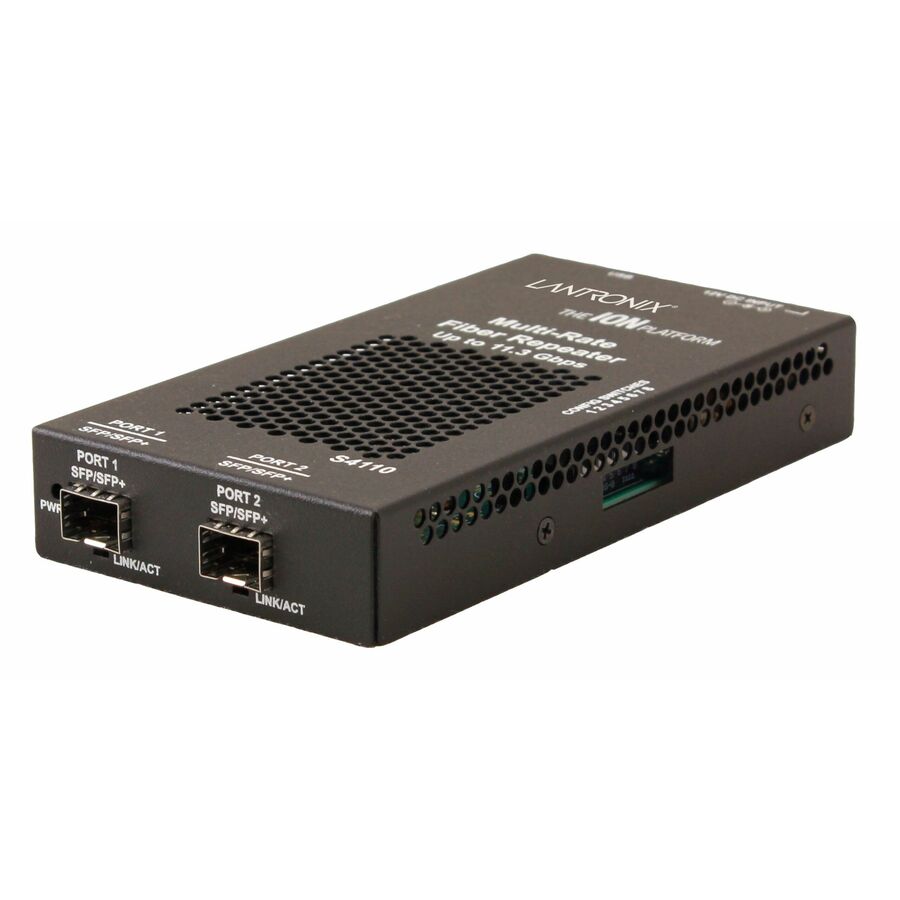

The S4110 is a stand-alone fiber to fiber media converter. It is protocol independent and supports data rates from 1Gbps to 11.5Gbps through two open SFP+ slots. This allows network managers to customize the S4110 with a pair of SFP+ modules to meet their network requirements. The open SFP+ ports support a wide variety of Transition Networks 10GE SFP+ fiber modules. This any-rate to same-rate converter can be used to perform reliable and cost-effective single mode to multimode conversion or it can be used to provide wavelength conversion in CWDM applications.

  • Fiber to fiber repeater
  • Supports data rates from 1Gbps to 11.5Gbps
  • Support any-rate to same-rate
  • Protocol Transparent, supports: Ethernet: 10Gig LAN, 10Gig Wan, 1Gig LAN
  • Fiber Channel: 10, 8, 4, 2, 1Gig
  • SONET/SDN OC-192, OC-48
  • SFP to SFP or SFP+ to SFP+
  • Provides conversion between different types of fiber
  • Supported transmission distance based on the SFP modules and fiber type used
  • Supports 3R (Reamplify, Reshape, and Retime) signal regeneration
  • No frame size limitations
  • Use as a fiber mode converter
Brand
Brand Lantronix
Power & Battery
Input Voltage 120 V AC
Power Source AC/DC
Power Consumption 4.20 W
Networking & Connectivity
Network Technology 1000Base-X
Size / Dimensions
Form Factor Shelf Mount
General Features
Maximum Data Transfer Rate 11.50 Gbit/s
Manufacturer Lantronix, Inc
Expansion Slots
Total Number of Expansion Slots 2
Expansion Slot Type SFP+
Number of SFP+ Slots 2
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
NDAA Compliant Yes
