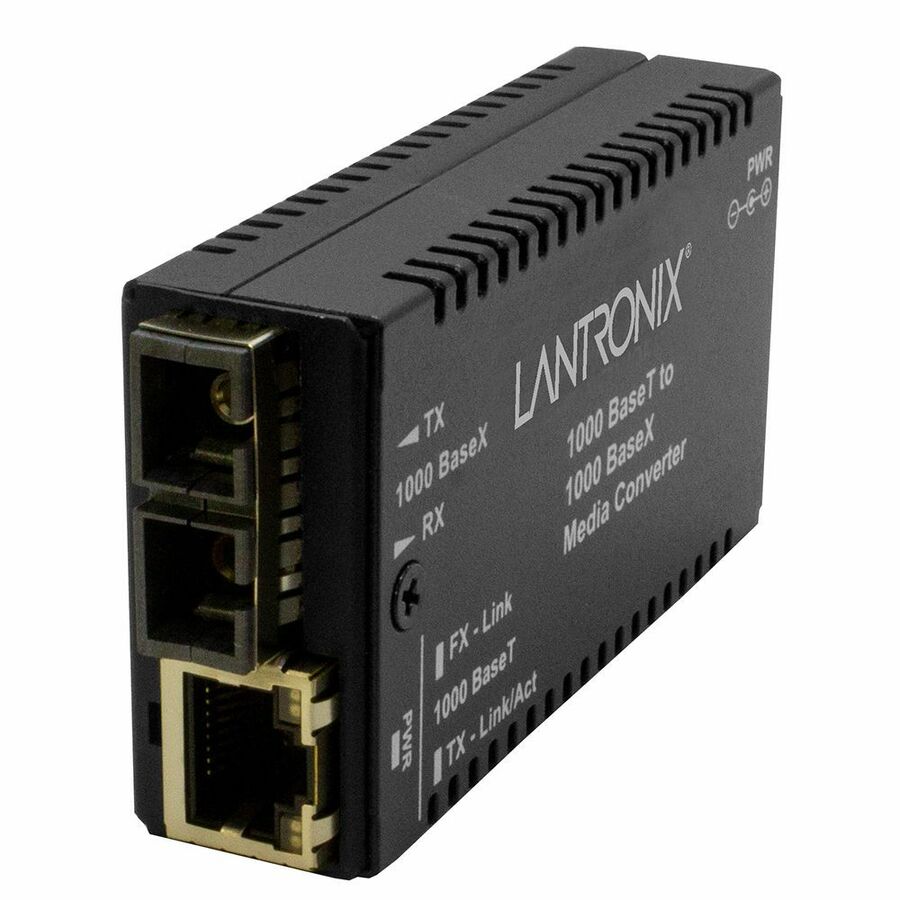

Lantronix M/GE-T-LX-01 Transceiver/Media Converter

$ 429.00 $ 429.00
$ 429.00

$ 429.00 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • USB
  • Network (RJ-45)
  • Number of Network (RJ-45) Ports
  • DVI
  • Fiber Mode Supported
  • Management Port
  • Total Number of Ports
  • Fiber Optic Cable Wavelength
  • Number of SC Ports
  • Form Factor
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Media Type Supported
  • Input Voltage
  • Maximum Distance Supported
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • NDAA Compliant
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

Mini Gigabit Ethernet Media Converter

1000Base-T to 1000Base-SX/LX

The M/GE-T Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.

  • Auto-Negotiation
  • Auto-MDI/MDIX
  • Automatic Link Restoration
  • Interoperable with other 1000Base-T/SX/LX NICs or switch ports
  • Status LEDs for easy monitoring
  • Supports SFP modules
  • Supports Jumbo Frames up to 13312bytes
  • 65% smaller than standard media converter
  • Extend Network Distance
  • Low-Latency Design
  • Fiber Link Pass Through
Brand
Brand Lantronix
Power & Battery
Input Voltage 12 V DC
Power Source AC/DC
Power Consumption 2.60 W
Networking & Connectivity
Network Technology 1000Base-T
USB Ports
USB No
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Size / Dimensions
Form Factor Standalone
General Features
Maximum Data Transfer Rate 1000 Mbit/s
Maximum Distance Supported 10 km
Manufacturer Lantronix, Inc
Video Ports
DVI No
Misc Ports
Management Port No
Total Number of Ports 2
Number of SC Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Cables
Fiber Mode Supported Single-mode
Fiber Optic Cable Wavelength 1310 nm
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
NDAA Compliant Yes
Transition Networks Mini Gigabit Ethernet Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - 10/100/1000Base-T, 1000Base-LX - 10 km - Desktop, Wall Mountable, Rack-mountable
