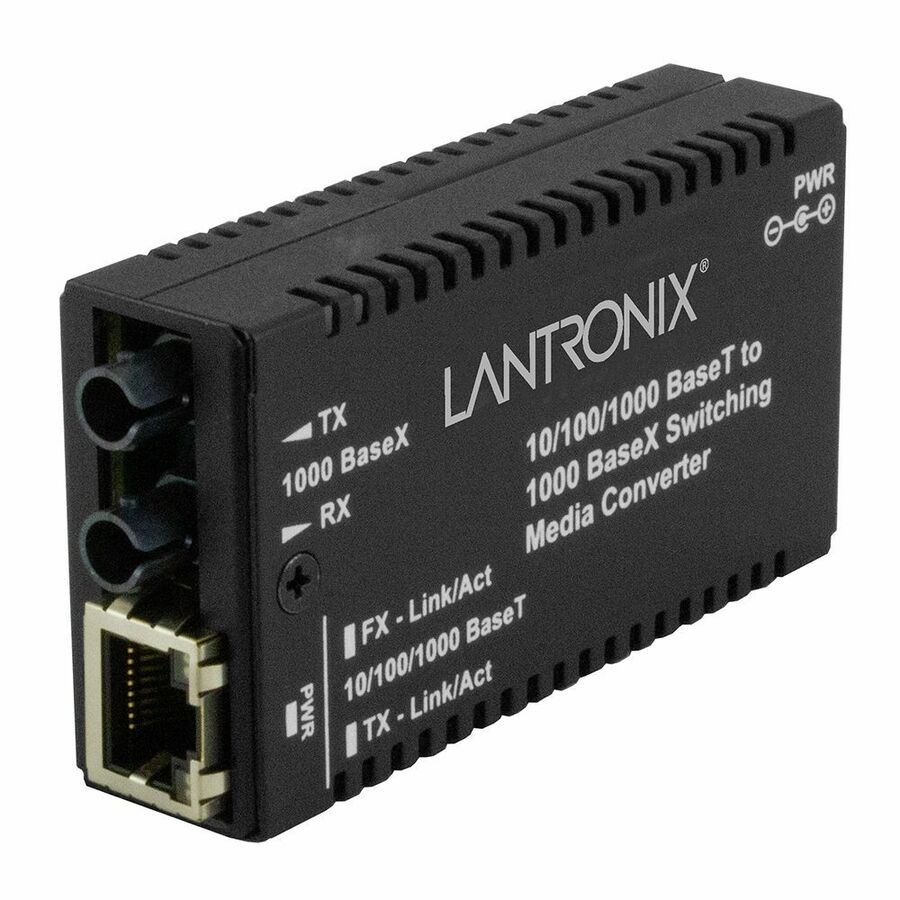

Lantronix M/GE-PSW-SX-01(ST) Transceiver/Media Converter

$ 339.99 $ 339.99
$ 339.99

$ 339.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Fiber Optic Cable Core/Claddi
  • Network Technology
  • Network (RJ-45)
  • Fiber Mode Supported
  • Total Number of Ports
  • Fiber Optic Cable Wavelength
  • Number of ST Ports
  • Form Factor
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Media Type Supported
  • Input Voltage
  • Maximum Distance Supported
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • NDAA Compliant
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

Mini Gigabit Ethernet Media Converter

10/100/1000Base-T to 1000Base-SX/LX

The M/GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.

  • Unit & Port LEDs allow for quick status information
  • Auto-Negotiation
  • Fixed Full-Duplex on fiber
  • Auto-MDI/MDIX
  • Active Link Pass Through
  • Automatic Link Restoration
  • Space saving design
  • Connect Legacy Networking Equipment: Connect an existing 10/100 Mbps device to 1000 Mbps devices.
  • Jumbo Frame (up to 10,240 Bytes)
  • USB Power Option, requires the use of a USB to DC barrel connector cable (USBC-AM-DC)
Brand
Brand Lantronix
Power & Battery
Input Voltage 12 V DC
Power Source AC Adapter
Power Consumption 3.15 W
Networking & Connectivity
Network Technology 1000Base-SX
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Size / Dimensions
Form Factor Standalone
General Features
Maximum Data Transfer Rate 1000 Mbit/s
Maximum Distance Supported 0.55 km
Manufacturer Lantronix, Inc
Misc Ports
Total Number of Ports 2
Number of ST Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Cables
Fiber Optic Cable Core/Claddi 50/125 µm
Fiber Mode Supported Multi-mode
Fiber Optic Cable Wavelength 850 nm
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
NDAA Compliant Yes
