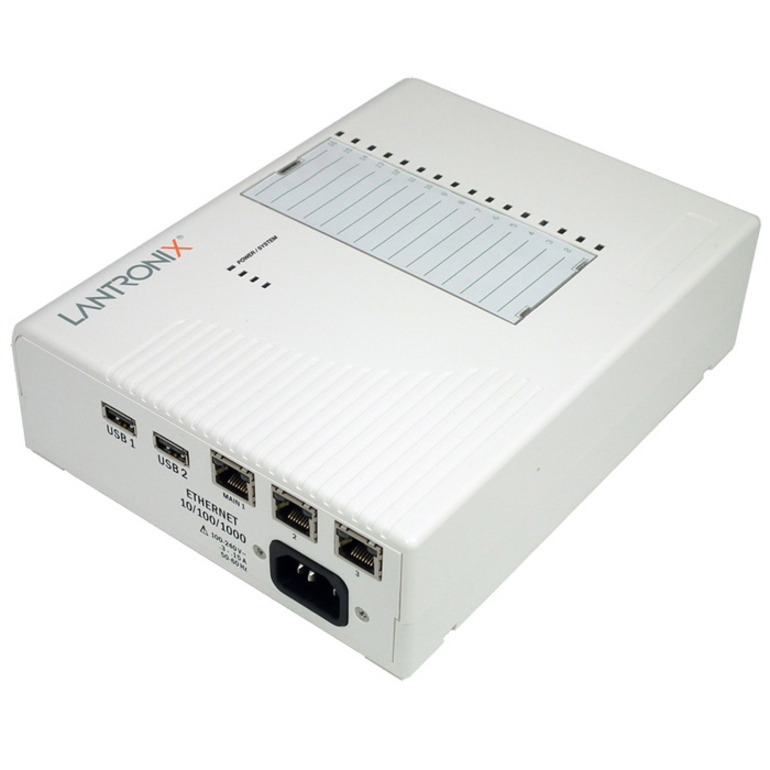

Next Generation Multi-Port Medical Device Server
Specifically designed for the medical industry, the UL and IEC-60601 compliant EDS-MDTM provides mission-critical device connectivity, allowing remote access and management of virtually any electronic or medical device.
EDS-MD boasts 4, 8 or 16 individually isolated RS-232 serial ports with a Gigabit (10/100/1000Mpbs) network interface. Going above and beyond the IEC-60601 requirement, EDS-MD provides galvanic isolation on all ports to ensure the highest levels of safety. If a grounding problem occurs, the operation of EDS-MD or other connected devices will not be affected.
| Brand | |
|---|---|
| Brand | Lantronix |
| CPU / Processor | |
|---|---|
| Processor Speed | 600 MHz |
| Memory / RAM | |
|---|---|
| Standard Memory | 256 MB |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| ISM Band | No |
| UNII Band | No |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Number of Serial Ports | 8 |
| Centronics Port | No |
| Parallel Port | No |
| Telephony | |
|---|---|
| Network (RJ-11) | No |
| Phone Line (RJ-11) | No |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
