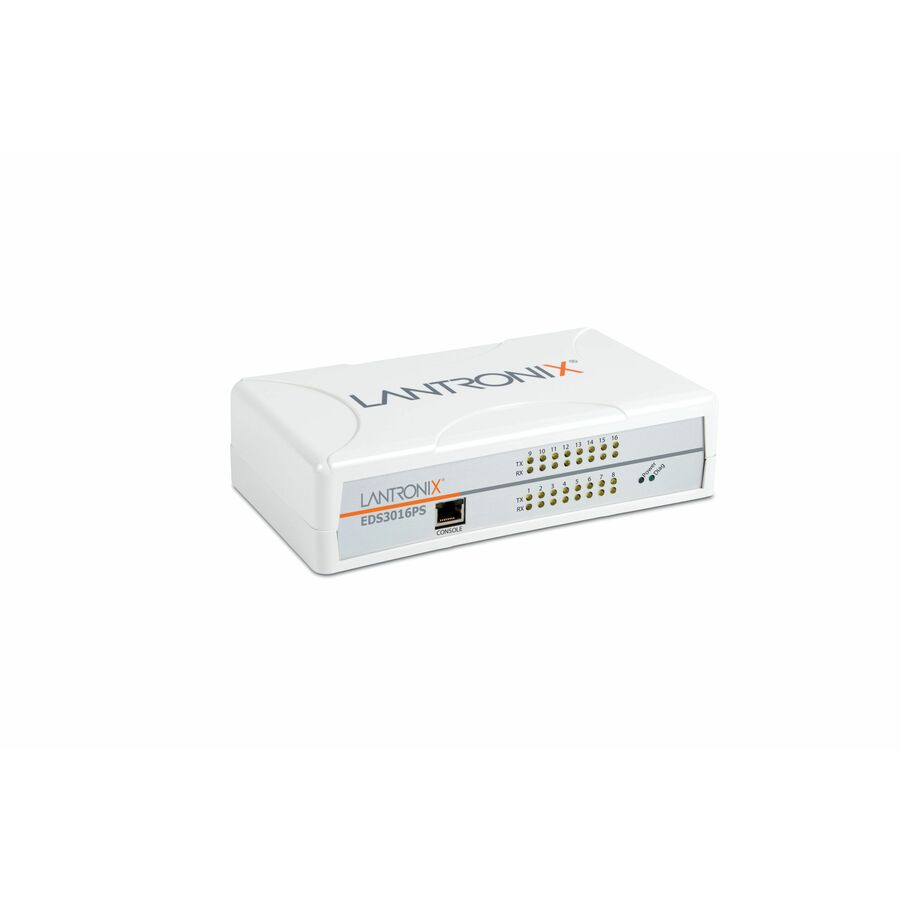

Lantronix EDS EDS3016PS Device Server

1,137.99 1,137.99
1,137.99

1,137.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Standard Memory
  • Network (RJ-45)
  • Plug/Connector Type
  • Number of Serial Ports
  • Form Factor
  • Ethernet Technology
  • Network Standard
  • Media Type Supported
  • Input Voltage
  • Certifications & Standards
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Product Condition
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

The EDS3000PS is a compact office grade plastic enclosed hybrid Ethernet terminal/multi serial port device servers (8-16) for easy remote access and management of virtually any IT/networking equipment or edge devices like medical equipment, POS terminals, or security equipment.

Comprehensive Device Security Framework
EDS3000PS device server delivers an unprecedented level of intelligence and safety with SSL/ TLS, AES, and SSH built-in. EDS provides enterprise-level security, allowing safe remote access and management from practically anywhere.

Lantronix core software carries 30 years of 'data-center grade' protection, so each networked device has the same level of security as corporate data center equipment and provides robust defenses to hostile Internet attacks.

Easy Configuration
Setup is a breeze with Windows-based Lantronix Provisioning Manager, which can be used locally or remotely with the Lantronix ConsoleFlow™ device management platform. A "Cisco-like" command-line interface (CLI) simplifies configuration and control, making it easier to integrate edge devices or data center equipment into the network. EDS3000PS leverages the Lantronix Com Port Redirector virtualization software, allowing existing applications to work with the EDS with no code modifications.

Centralized Device Management Platform
Monitor, manage, and control your devices from anywhere, at any time with the ready-touse software platform web application. The easy-to-use platform provides software-defined automation with zero-touch provisioning across all of your devices and the capture of device telemetry data for event management and analytics.

  • Ethernet 10Base-T or 100Base-TX (auto sensing and hard-coded, auto crossover)
  • Interface: Software selectable RJ45 serial ports with customizable baud rate support for non-standard serial speeds
  • Data Rates: Software selectable standard baud rates from 300 to 230 K Baud
  • Connectors: 8 or 16 RJ45 serial ports depending upon model
  • Characters: 7 or 8 data bits
  • Parity: Odd, even, none
  • Stop Bits: 1 or 2
  • Modem Control Signals: CTS, RTS, DTR, DCD
  • Flow Control: XON/XOFF (software), CTS/RTS (hardware), None
Brand
Brand Lantronix
Memory / RAM
Standard Memory 512 MB
Power & Battery
Plug/Connector Type IEC Connector
Input Voltage 230 V AC
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Size / Dimensions
Form Factor Wall Mountable
General Features
Manufacturer Lantronix, Inc
Product Condition New
Misc Ports
Number of Serial Ports 16
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
