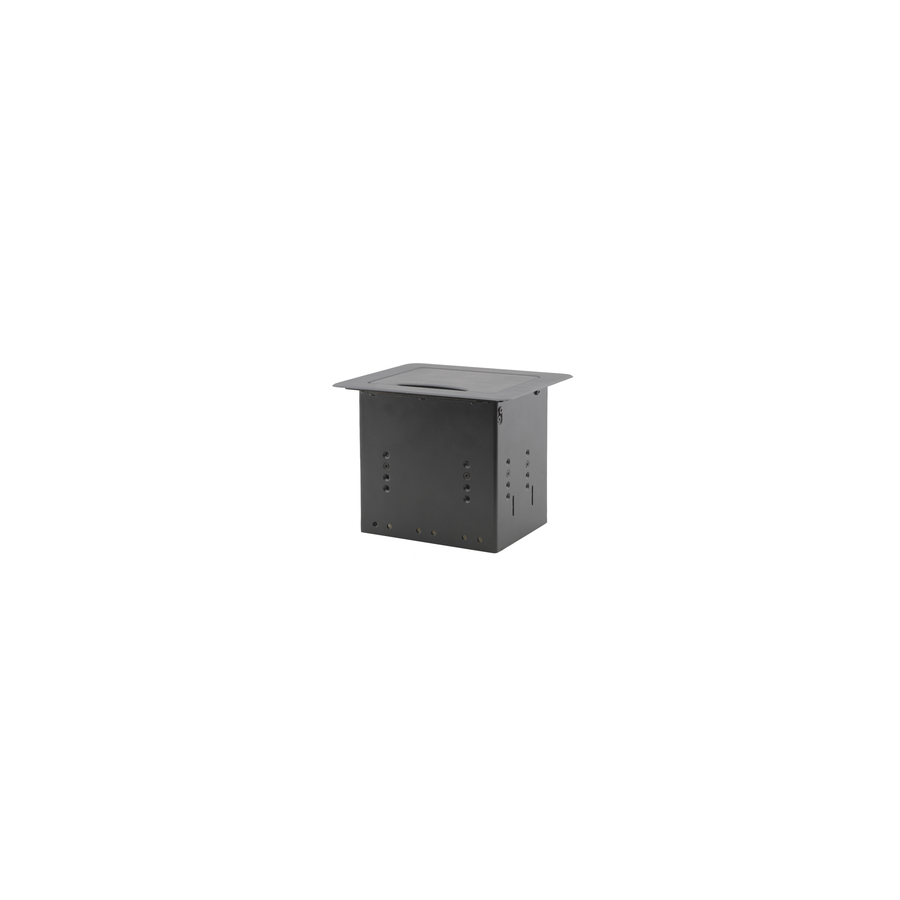

The TBUS-3xl is the enclosure of a new modular system with a tilt-up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.
- Inner Frame - 3 different "T3F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
- Power Sockets - 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
- Power Cords - 8 different "C-AC" single power cords for each power socket.
- Optional Accessories - TBUS Brackets, K-Able Box Cable Reels, Step-In Modules and Controllers are available.
- Cover - Manually opens & closes.
- Connector Depth - Adjustable.
- Installation Requirement - Table cutout of 158mm x 123mm (6.23" x 4.85").
- Dimensions - Top plate: 17.6cm x 14.0cm (6.9" x 5.5") W, D; Enclosure: 13.6cm x 10.2cm x 13.0cm (5.4" x 4.0" x 5.1") W, D, H.
- Weight - 1.02kg (2.25lb) approx.; table clamps: 0.257kg (0.566lbs); template: 0.125kg (0.275lbs).
- Makes it quick, convenient, and simple to adjust and reposition connectors in a secure mounting system
- Desk application/usage for maximum productivity with convenience and optimal results
| Brand | |
|---|---|
| Brand | Kramer Electronics LTD |
| General Features | |
|---|---|
| Manufacturer | Kramer Electronics LTD |
