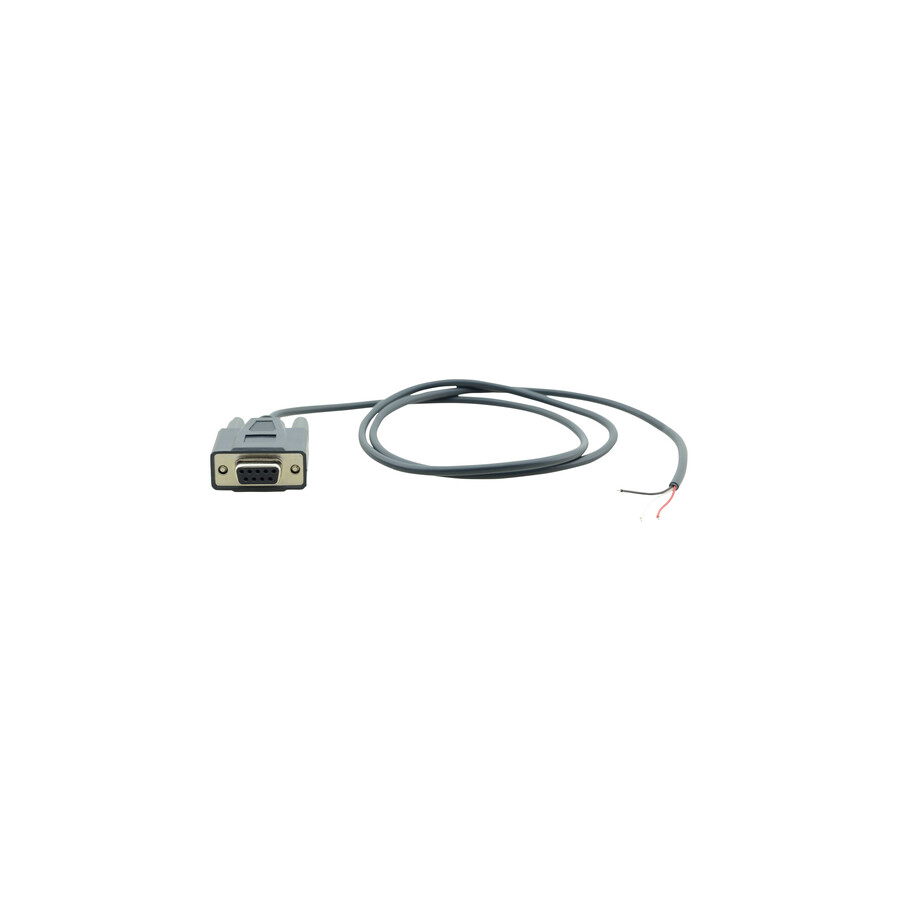

Kramer's C-D9F/OPEN control cables are for RS-232 applications to control devices within a professional AV system. Many Kramer products are RS-232 controllable and equipped with terminal block connector. This RS-232 cable helps to connect them safely to transmit the RS-232 serial commands to a touch-screen system, PC, or other serial controller equipped with D9 connector.
- Quality Construction - Constructed using three 28AWG isolated conductors, terminated with a molded female 9-pin D-sub connector, nickel plated on one side and open end, non-terminated, on the second side.
- Pinout - Wired pin to pin on pins 2, 3 & 5.
- Molded Strain Relief.
- Stripped & Tinned Wires - At open end.
- RoHS Compliant.
- Varied Selection of Lengths - 3 to 50ft (1 to 15m).
- Allows easy connection between devices and helps transfer data quickly with accuracy
- Features Bare Wire/Serial cable type for optimal performance and better dependability
- Molded feature for your convenience and ease of usage
- PC device supported for better reliance and optimal performance
| Brand | |
|---|---|
| Brand | Kramer Electronics LTD |
| General Features | |
|---|---|
| Manufacturer | Kramer Electronics LTD |
| Cables | |
|---|---|
| Cable Length | 6 ft |
| Cable Type | Bare Wire/Serial |
| Connector Type on First End | DB-9 RS-232 Serial - Female |
| Connector on First End Details | 1 x 9 - pin DB-9 RS-232 Serial - Female |
| Connector Type on Second End | Bare Wire |
| Connector Plating | Nickel |
| American Wire Gauge | 28 AWG |
| Number of Conductors | 3 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
Kramer RS-232 to Open End Control Cable - Bare Wire/Serial Data Transfer Cable for PC, Touch Panel, Audio/Video Device, Serial Controller - First End: 1 x 9 - pin DB-9 RS-232 Serial - Female - Nickel Plated Connector - 28 AWG - Gray, Red, White, Black
