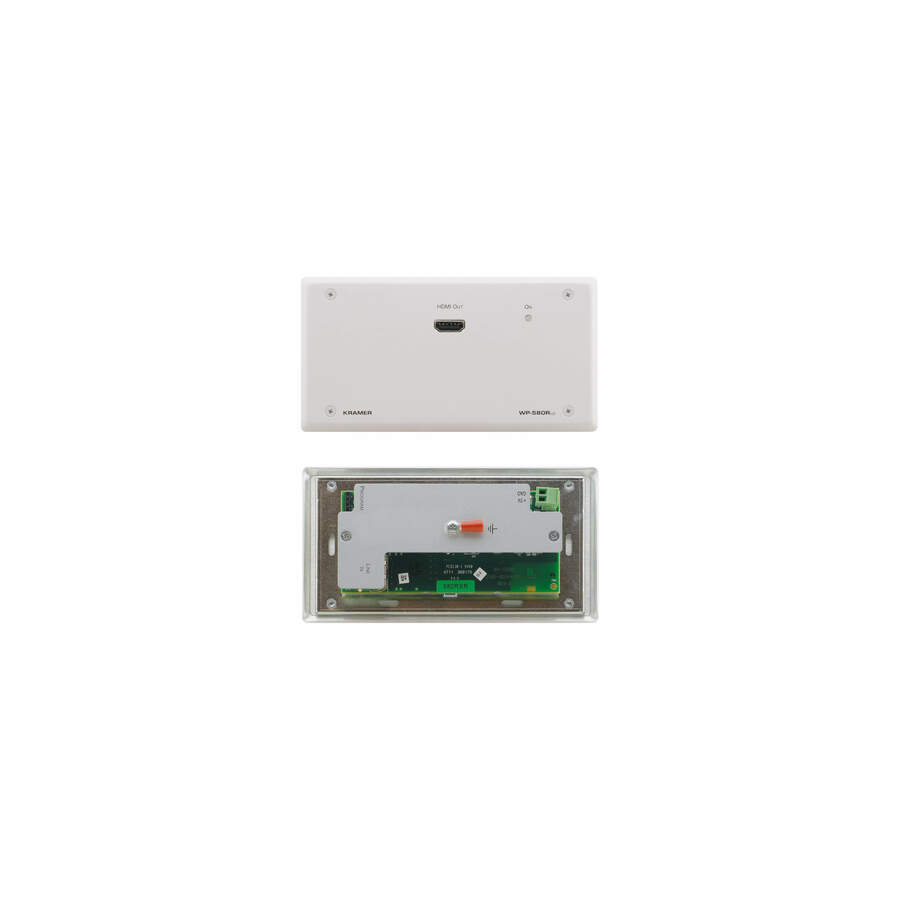

WP-580Rxr is an extended range, HDBaseT wall plate receiver for 4K@60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair. WP-580Rxr receives an HDBaseT twisted pair signal from the WP-580Txr and converts it back into HDMI signals. The WP-580Rxr(D) model is supplied with a Midway Size 2 gang DECORA® design frame.
- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode.
- HDTV Compatible.
- HDCP Compliance.
- HDBaseT™ Technology.
- HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD.
- 3D Pass-Through.
- EDID PassThru - Passes EDID signals between the source and display.
- 2K Support in Normal Mode.
- System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using recommended Kramer cables
- Cable - For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/WP-580Rxr.
- Indicators - Status LEDs for input, output, link and power.
Applications
- Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios.
