Data Center NVMe™ SSD

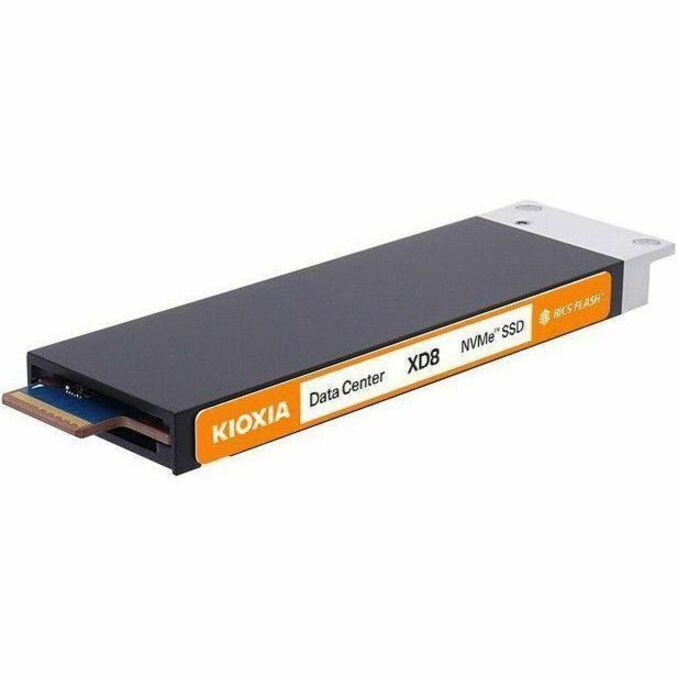

KIOXIA XD8 Series E1.S SSDs are designed to the Enterprise and Datacenter Standard Form Factor (EDSFF) E1.S specification to address the specific requirements of hyperscale applications, including the performance, power and thermal requirements of the Open Compute Project (OCP) Datacenter NVMe™ SSD Specification. In addition to 9.5 mm thickness E1.S, 15 mm thickness E1.S with the heatsink is also supported. Designed to optimize system density and efficiency, the XD8 Series SSDs represent the future of flash storage for servers and storage systems in cloud and hyperscale data centers, and support storage capacities up to 7.68 TB.
Key Features
- Compliant with PCIe® 5.0 (Gen5 x4), NVMe™ 2.0 specifications
- Open Compute Project Datacenter NVMe™ SSD specification v2.5 support (not all requirements)
- E1.S form factor (9.5 mm / 15 mm thickness)
- KIOXIA proprietary architecture: controller, firmware and BiCS FLASH™ generation 5
- 1.92 TB / 3.84 TB / 7.68 TB capacity options
- Power loss protection (PLP) and end-to-end data protection
- Security option: SED (Self Encrypting Drive)
Key Applications
- Servers and storage systems for cloud and hyperscale data centers
- Store unlimited documents, pictures, and videos with the impressive 1.88 TB capacity
- Power and energy-efficient design ensures maximum reliability for your SSD
- Maximize SSD potential with PCI Express NVMe 5.0 x4, delivering high sustained bandwidth for complex renders
- E1.S (9.5 mm) form factor ensures consistent performance, making it ideal for users who need dependable storage solutions in demanding environments
- Ensures fast and dependableaccess to data with non-volatile memory, maintaining consistent performance and reliability
| Brand | |
|---|---|
| Brand | Toshiba |
| Storage | |
|---|---|
| Storage Capacity | 1.88 TB |
| Drive Type | Internal |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 5.0 x4 |
| Endurance (DWPD) | 1 |
| Random 4KB Read | 1700000IOPS |
| Random 4KB Write | 100000IOPS |
| Maximum Sequential Read | 12.21 GB/s |
| Maximum Sequential Write | 3.03 GB/s |
| Size / Dimensions | |
|---|---|
| Form Factor | E1.S (9.5 mm) |
| General Features | |
|---|---|
| Manufacturer | Toshiba |
