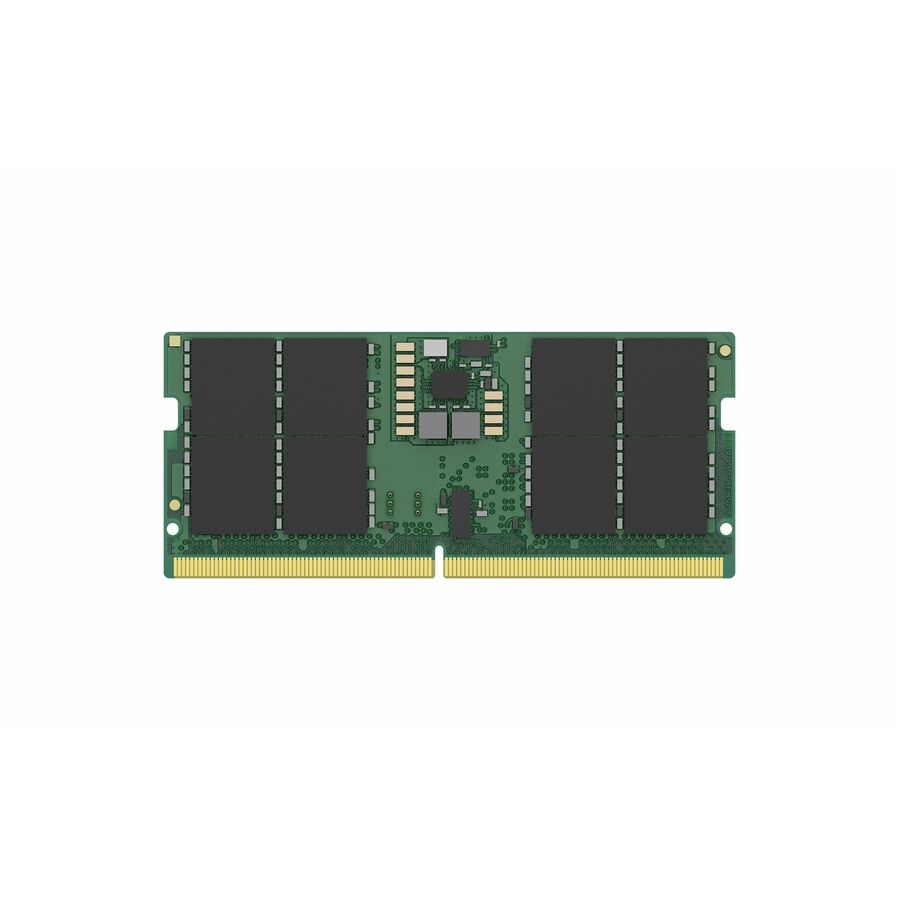

This document describes ValueRAM's KVR64V52BS8-32 is a 4G x 64-bit (32GB) DDR5-6400 CL52 Clocked Small Outline DIMMs (CSODIMMs), 1Rx8, memory module, based on eight 4G x 8-bit FBGA components and one Clock Driver (CKD). The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 262-pin CSODIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- PCB: Height 1.18" (30.00mm)
- RoHS Compliant and Halogen-Free
- With Clock Driver
| Brand | |
|---|---|
| Brand | Kingston Technology Company |
| Memory / RAM | |
|---|---|
| Memory Size | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 6400 MHz |
| Memory Standard | DDR5-6400/PC5-51200 |
| Memory Voltage | 1.10 V |
| Number of Pins | 262-pin |
| Memory Rank | Single-rank |
| CAS Latency | CL52 |
| Error Checking | Non-ECC |
| Size / Dimensions | |
|---|---|
| Form Factor | CSODIMM |
| Thickness | 157.5 mil |
| General Features | |
|---|---|
| Manufacturer | Kingston Technology Company |
