Kingston FURY KF584CU40RSA-24 is a 3G x 64-bit (24GB) DDR5-8400 CL40 Clocked Unbuffered DIMMs (CUDIMMs) 1Rx8, memory module, based on eight 3G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-8400 at a low latency timing of 40-52-52 at 1.45V. The SPDs are programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.77" (45mm), w/heatsink
| Brand | |
|---|---|
| Brand | Kingston Technology Company |
| Memory / RAM | |
|---|---|
| Memory Size | 24 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 8400 MHz |
| Memory Standard | DDR5-8400/PC5-67200 |
| Memory Voltage | 1.45 V |
| Number of Pins | 288-pin |
| Memory Rank | Single-rank |
| CAS Latency | CL40 |
| Error Checking | On-die ECC |
| Signal Processing | Unbuffered |
| Size / Dimensions | |
|---|---|
| Form Factor | DIMM |
| Thickness | 301.6 mil |
| Appearance | |
|---|---|
| RGB | Yes |
| General Features | |
|---|---|
| Manufacturer | Kingston Technology Company |
| Miscellaneous | |
|---|---|
| Upgrade Type | Generic |

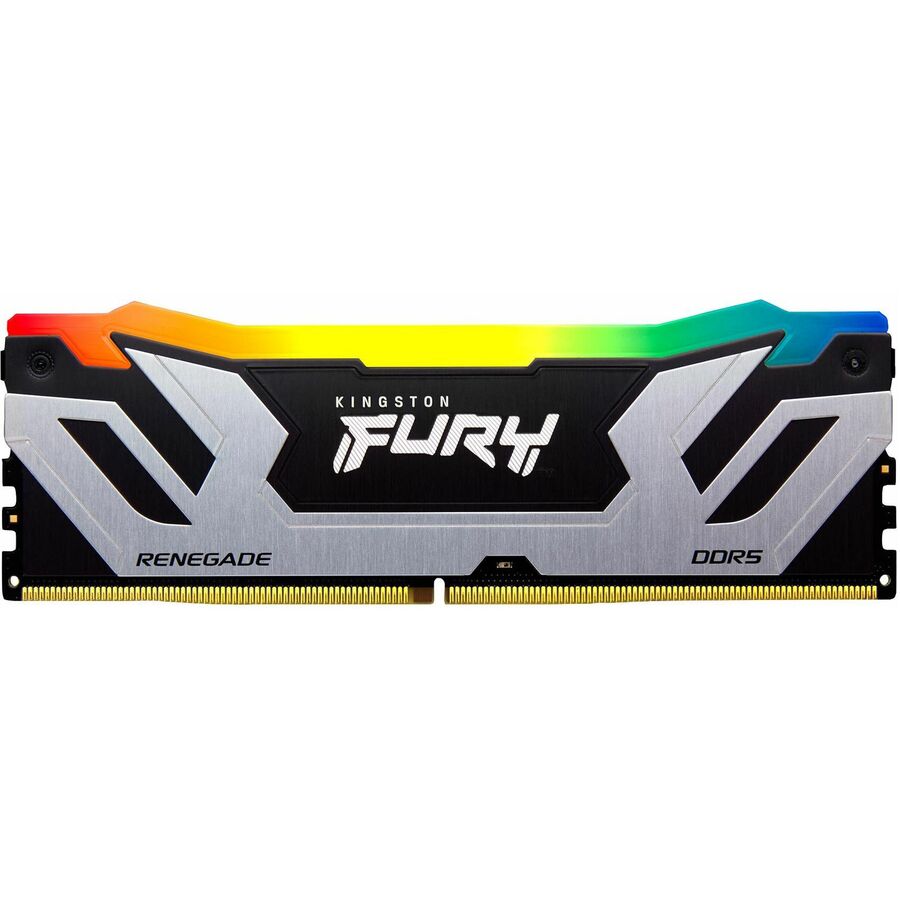

Kingston FURY Renegade RAM Module
