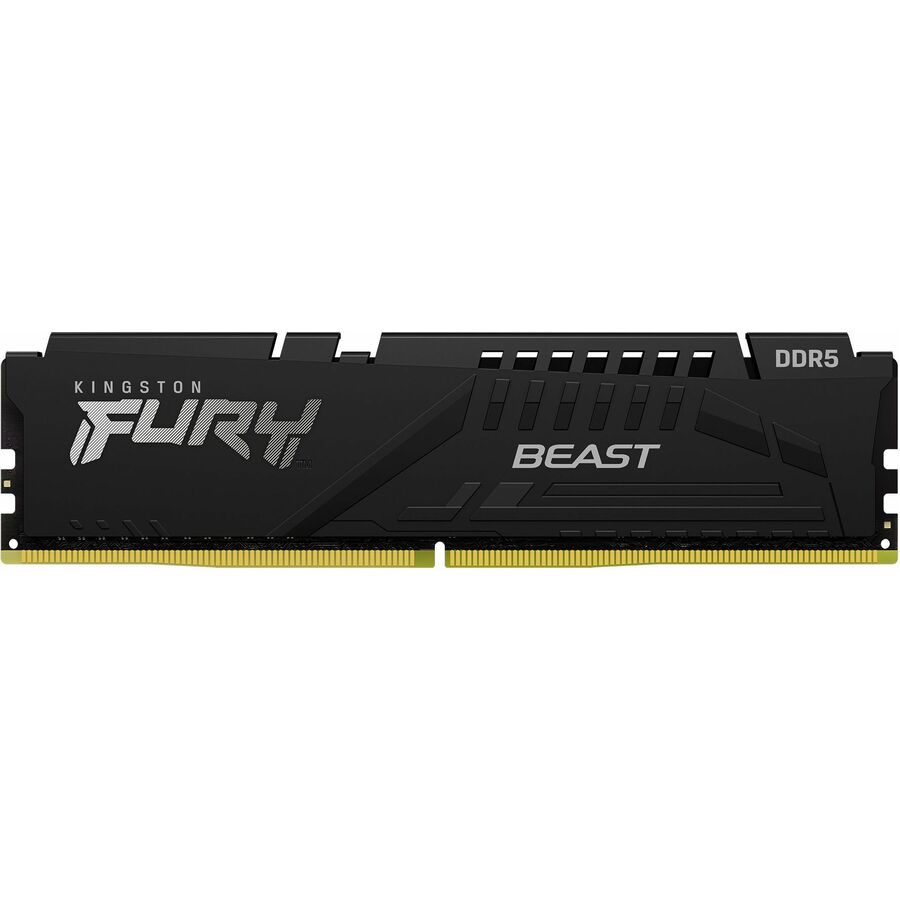

Kingston FURY KF560C30BBE-8 is a 1G x 64-bit (8GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6000 CL30-36-36 @1.4V
- EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V
- XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V
- XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.37" (34.9mm), w/heatsink
- Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
- Up to 6000 MHz speed with unbuffered signal and CL30 latency for smooth computer performance
- 8 GB of memory to heighten your computer's performance
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- 1 x 8GB modules for dependable storage efficiency and maximum convenience
- 288-pin for enhanced, dependable system performance with maximum usability
- CL30 CAS latency for quicker access to the required location in a timely efficient manner
- DIMM form factor with 288-pin and 8 GB memory size effectively reduces minimizes the load on the server memory BUS to ensure maximum productivity
- Unbuffered signal processing provides reliable optimization for your required applications to allow maximum usability
| Brand | |
|---|---|
| Brand | Kingston Technology Company |
| Memory / RAM | |
|---|---|
| Memory Size | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 6000 MHz |
| Memory Standard | DDR5-6000/PC5-48000 |
| Memory Voltage | 1.40 V |
| Number of Modules | 1 x 8GB |
| Number of Pins | 288-pin |
| Memory Rank | Single-rank |
| CAS Latency | CL30 |
| Error Checking | Non-ECC |
| Signal Processing | Unbuffered |
| Size / Dimensions | |
|---|---|
| Form Factor | DIMM |
| Thickness | 260.6 mil |
| General Features | |
|---|---|
| Manufacturer | Kingston Technology Company |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Environmental Certification | Hazard Assessment of Perfluorooctane Sulfonate (PFOS) |
