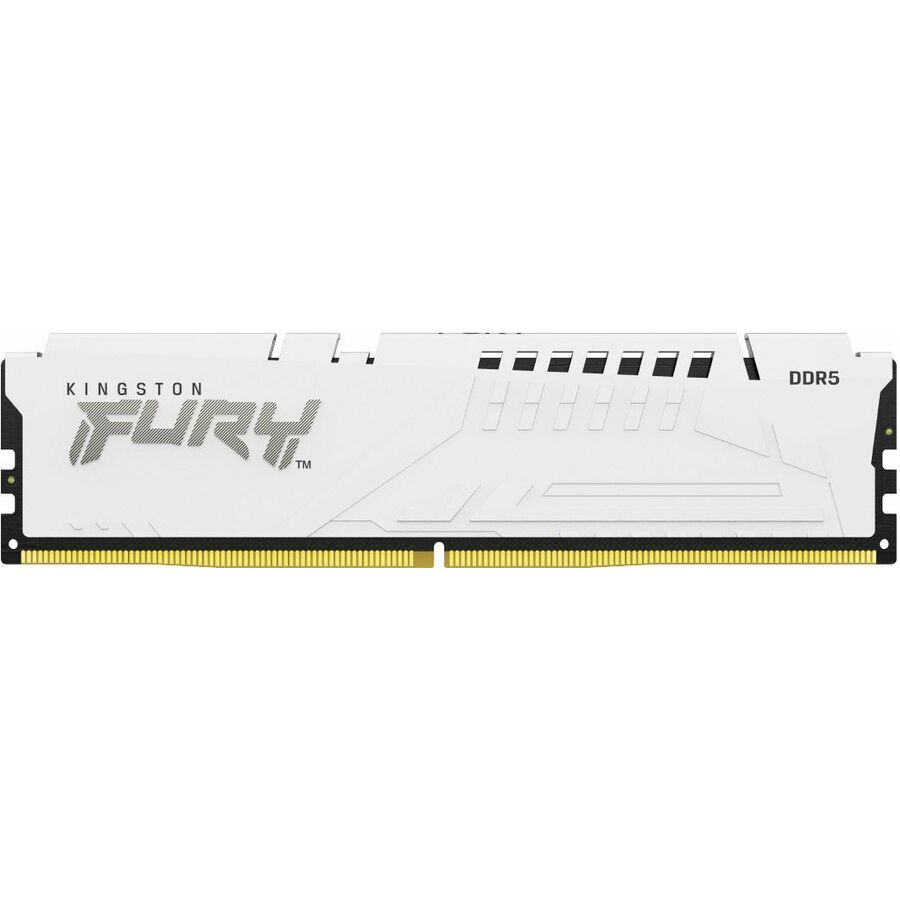

Kingston FURY KF560C30BWEK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6000 CL30-36-36 @1.4V
- EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V
- XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V
- XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.37" (34.9mm), w/heatsink
- Allow convenient and fast access to the stored information your computer is actively using for maximum efficiency
- Up to 6000 MHz speed with unbuffered signal for smooth computer performance
- Whether you are playing games, using heavy loaded OS or video editing software, the 64 GB of memory will make them run in a flash
- DDR5 SDRAM memory technology effectively enables data to be moved at various points in a CPU clock cycle to allow maximum productivity
- 2 X 32GB modules for quick access and retrieval of data and information to ensure maximum usability
- 288-pin for optimal performance and maximum reliability
- CL30 CAS latency for reliable, fast response and improved performance
- DIMM form factor with 288-pin and 64 GB memory size effectively reduces minimizes the load on the server memory BUS to ensure maximum productivity
- Unbuffered signal processing allows higher accuracy and enhanced ram module performance
| Brand | |
|---|---|
| Brand | Kingston Technology Company |
| Memory / RAM | |
|---|---|
| Memory Size | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 6000 MHz |
| Memory Standard | DDR5-6000/PC5-48000 |
| Memory Voltage | 1.40 V |
| Number of Modules | 2 X 32GB |
| Number of Pins | 288-pin |
| Memory Rank | Dual-rank |
| CAS Latency | CL30 |
| Error Checking | Non-ECC |
| Signal Processing | Unbuffered |
| Size / Dimensions | |
|---|---|
| Form Factor | DIMM |
| Thickness | 260.6 mil |
| General Features | |
|---|---|
| Manufacturer | Kingston Technology Company |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Environmental Certification | Hazard Assessment of Perfluorooctane Sulfonate (PFOS) |
