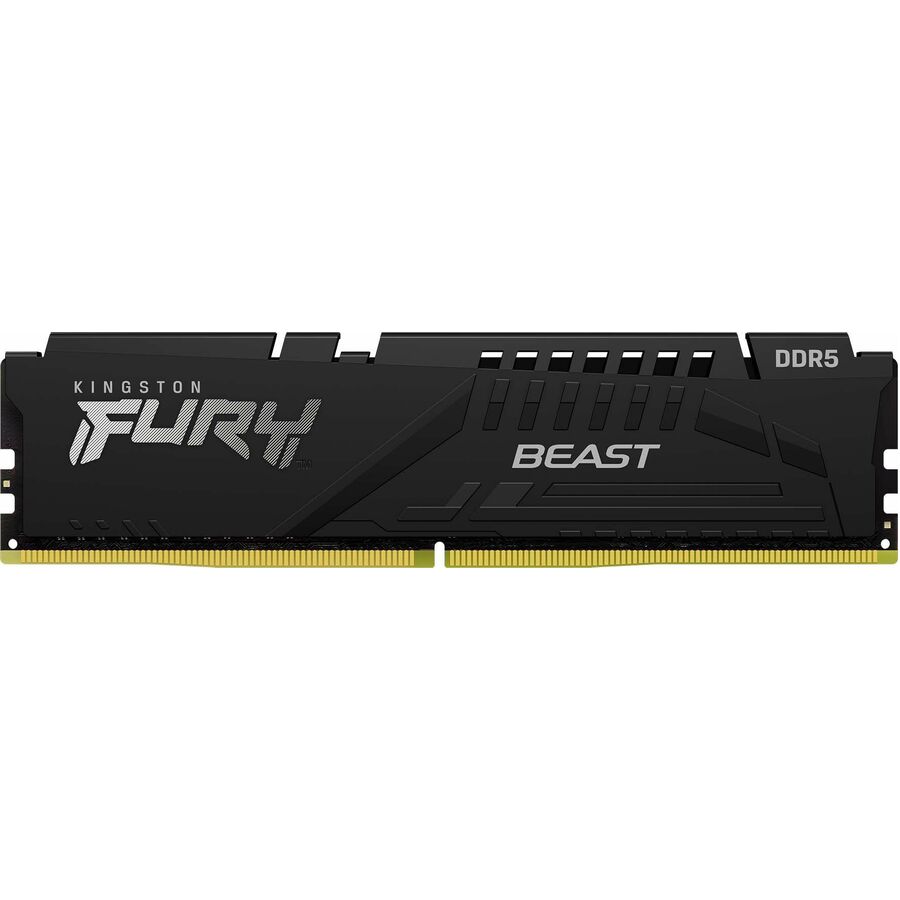

Kingston FURY KF568C34BBEAK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6800 CL34 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6800 at a low latency timing of 34-45-45 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6800 CL34-45-45 @1.4V
- EXPO Profile #1: DDR5-6400 CL32-39-39 @1.4V
- XMP Profile #1: DDR5-6800 CL34-45-45 @1.4V
- XMP Profile #2: DDR5-6400 CL32-39-39 @1.4V
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.66" (42.23mm), w/heatsink
- Allow convenient and fast access to the stored information your computer is actively using for maximum efficiency
- No matter how heavy and numerous the applications that you are using, 6800 MHz memory speed with CL34 latency will run them smoothly
- 32 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- 2 x 16GB modules for enhanced memory reliability and productivity
- 288-pin for optimal performance and maximum reliability
- CL34 CAS latency for quicker access to the required location in a timely efficient manner
- DIMM form factor with 288-pin and 32 GB memory size effectively lessens the electrical load on the memory controller to allow maximum feasibility
- Unbuffered signal processing provides reliable optimization for your required applications to allow maximum usability
| Brand | |
|---|---|
| Brand | Kingston Technology Company |
| Memory / RAM | |
|---|---|
| Memory Size | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 6800 MHz |
| Memory Standard | DDR5-6800/PC5-54400 |
| Memory Voltage | 1.40 V |
| Number of Modules | 2 x 16GB |
| Number of Pins | 288-pin |
| Memory Rank | Single-rank |
| CAS Latency | CL34 |
| Error Checking | Non-ECC |
| Signal Processing | Unbuffered |
| Size / Dimensions | |
|---|---|
| Form Factor | DIMM |
| Thickness | 279.9 mil |
| Appearance | |
|---|---|
| RGB | Yes |
| General Features | |
|---|---|
| Manufacturer | Kingston Technology Company |
