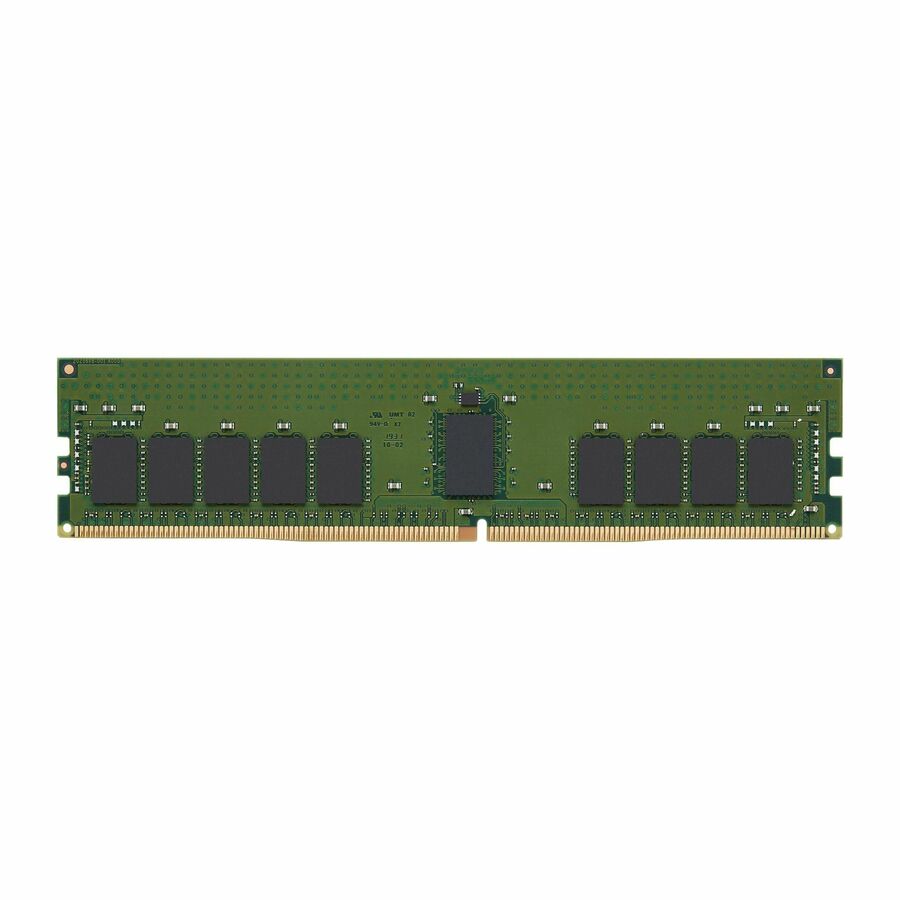

Kingston's KSM32RD8/32MFR is a 4G x 72-bit (32GB)
DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx8, ECC, memory module, based on eighteen 2G x
8-bit FBGA components. The SPD is programmed to JEDEC
standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each
288-pin DIMM uses gold contact fingers. The electrical and
mechanical specifications are as follows:
FEATURES
- Power Supply: VDD = 1.2V
- VDDQ = 1.2V
- VPP = 2.5V
- VDDSPD = 2.41V to 2.75V
- Functionality and operations comply with the DDR4 SDRAM datasheet
- 16 internal banks
- Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
- the banks in the same or different bank group accesses are available
- Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Supports ECC error correction and detection
- On-Die Termination (ODT)
- Temperature sensor with integrated SPD
- This product is in compliance with the RoHS directive.
- Per DRAM Addressability is supported
- Internal Vref DQ level generation is available
- Write CRC is supported at all speed grades
- CA parity (Command/Address Parity) mode is supported
- Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
- Up to 3200 MHz speed with CL22 latency for playing the latest games and using heavy software
- 32 GB of memory can produce approx. 10K MIPS and as a result, your system gets more room to run complex apps.
- 288-pin DDR4-3200/PC4-25600 interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance
- 1 x 32GB modules for dependable storage efficiency and maximum convenience
- 288-pin for faster, dependable performance and better access to data and information
- CL22 CAS latency for quicker access to the required location in a timely efficient manner
- Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
- DIMM form factor with 288-pin and 32 GB memory size effectively reduces minimizes the load on the server memory BUS to ensure maximum productivity
- Registered signal processing allows high speed and accuracy to allow maximum reliability
| Brand | |
|---|---|
| Brand | Kingston Technology Company |
| Memory / RAM | |
|---|---|
| Memory Data Transfer Rate | 3.20 GT/s |
| Memory Size | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed | 3200 MHz |
| Memory Standard | DDR4-3200/PC4-25600 |
| Memory Voltage | 1.20 V |
| Number of Modules | 1 x 32GB |
| Number of Pins | 288-pin |
| Memory Rank | Dual-rank |
| CAS Latency | CL22 |
| Error Checking | ECC |
| Signal Processing | Registered |
| Size / Dimensions | |
|---|---|
| Form Factor | DIMM |
| General Features | |
|---|---|
| Manufacturer | Kingston Technology Company |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Environmental Certification | Hazard Assessment of Perfluorooctane Sulfonate (PFOS) |
