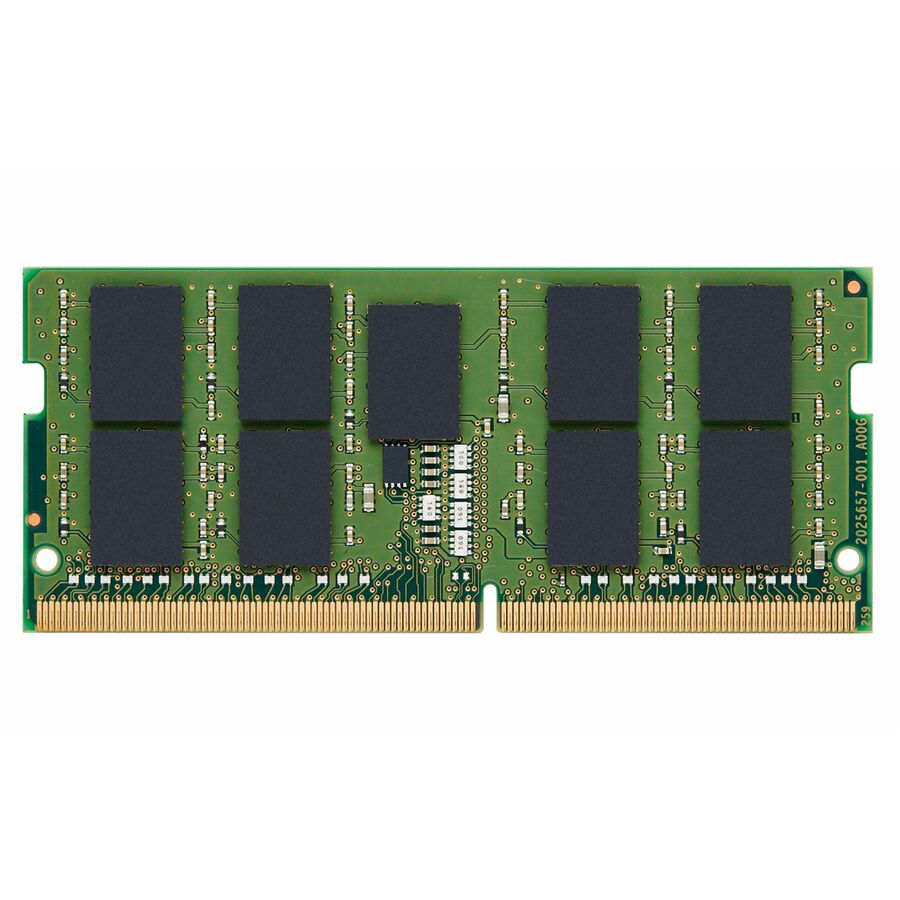

Kingston's KSM32SED8/16HE is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) w/ parity, 2Rx8, ECC, memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
- Allow convenient and fast access to the stored information your computer is actively using for maximum efficiency
- Up to 3200 MHz speed for smooth computer performance
- SODIMM 16 GB capacity is enough to execute all memory hungry programs simultaneously
- DDR4-3200/PC4-25600 operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation
- 1 x 16GB modules for quick access and retrieval of data and information to ensure maximum usability
- 260-pin for optimal performance and maximum reliability
- CL22 CAS latency for reliable, fast response and improved performance
- Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
- SODIMM form factor with 260-pin and 16 GB memory size effectively lessens the electrical load on the memory controller to allow maximum feasibility
| Brand | |
|---|---|
| Brand | Kingston Technology Company |
| Memory / RAM | |
|---|---|
| Memory Data Transfer Rate | 3.20 GT/s |
| Memory Size | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed | 3200 MHz |
| Memory Standard | DDR4-3200/PC4-25600 |
| Memory Voltage | 1.20 V |
| Number of Modules | 1 x 16GB |
| Number of Pins | 260-pin |
| Memory Rank | Dual-rank |
| CAS Latency | CL22 |
| Error Checking | ECC |
| Size / Dimensions | |
|---|---|
| Form Factor | SODIMM |
| General Features | |
|---|---|
| Manufacturer | Kingston Technology Company |
