Features | Designed Exclusively for Surface
Kensington worked directly with Microsoft to provide professional-level connectivity that looks as good as it functions. Connect with confidence for a seamless dock and charge experience.
Plug-and-Play
Offers a quick and powerful plug-and-play solution for Thunderbolt™ based Surface devices running Windows (10 or later).
Thunderbolt™ 4 Technology
Supports next-level Thunderbolt experiences. Transfers up to 40Gbps of data, video, and audio. Provides daisy chain support for SSDs, monitors, and other Thunderbolt™ devices. Blocks peripheral devices from unauthorized access to your system memory using Intel VT-d DMA protection.
Single 8K or Dual 4K Support for Thunderbolt™ Devices
Extend visual productivity with the resolution, contrast, and color depth of Ultra HD. Supports up to Single 8K @ 60Hz via a Thunderbolt™ 4 port or Dual 4K @ 60Hz via two HDMI® ports.
Up to 96W Dynamic Power Delivery
Delivers power whenever and wherever you need it-to host and connected accessories. Supports up to 96W of Power Delivery and provides optimal performance under any usage scenario.
Productive 13-in-1 Design
Extend your productivity with two HDMI® ports, one Thunderbolt™ 4 port, one Thunderbolt™ 4 host port, one USB-C® 3.2 Gen2 10Gbps port, two USB-A 3.2 Gen2 10Gbps ports, two USB-A 3.2 Gen1 5Gbps ports, one Gigabit Ethernet port, one audio combo jack, and two UHS-II 4.0 SD and Micro SD card readers.
Built-in SD and Micro SD Card Readers
Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5765T transfers files at ultra-fast speeds via built in UHS-II SD and Micro SD card readers.
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately.
Free Kensington DockWorks™ Software and 3-Year Limited Warranty
Use our complimentary DockWorks™ software for the best connection, performance, and security from your Kensington dock-and enjoy peace of mind knowing your covered by Kensington with a professional warranty.

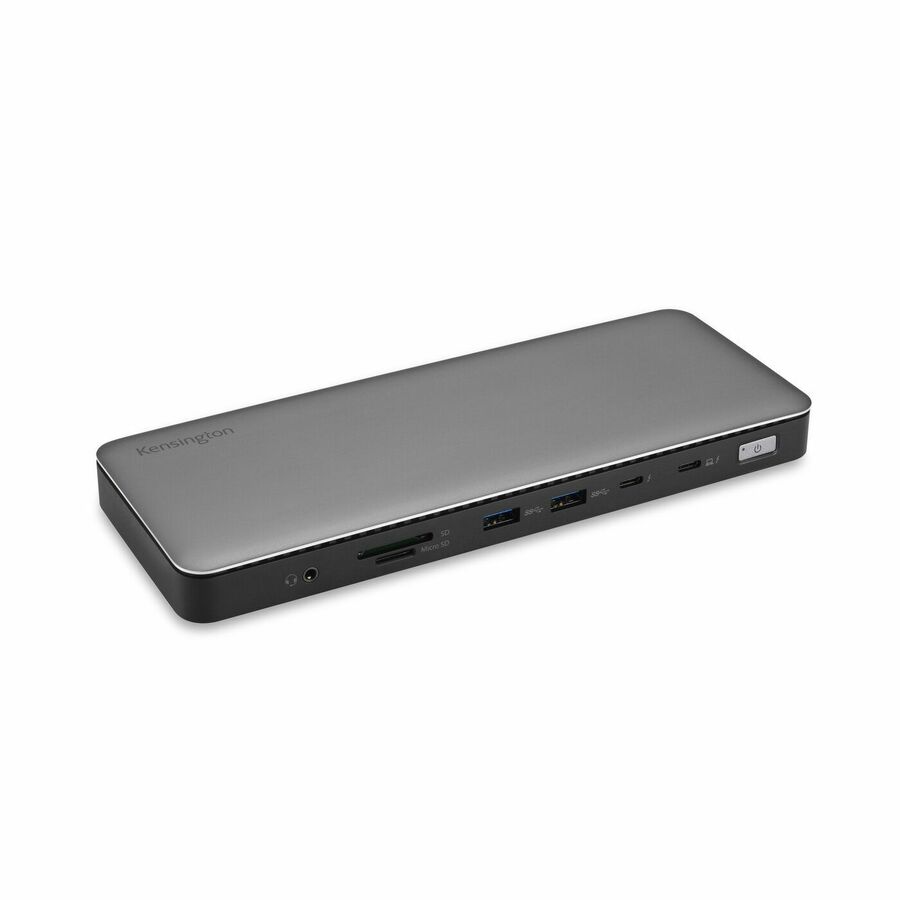

Ideal for professionals and creatives using Thunderbolt™ based Surface devices who want more speed to work with large files, support for multiple 4K monitors, and more ports so they can connect to accessories without using adapters, the SD5765T Thunderbolt™ 4 Dual 4K Docking Station is an affordable high-speed dock that provides everything you need to enhance your productivity now and well into the future. Designed exclusively for Surface, the SD5765T Thunderbolt™ 4 Dual 4K Docking Station provides more speed, more power, and more video options. Delivering 40Gbps data transfer speeds, support for Single 8K or Dual 4K @ 60Hz, two HDMI® ports, multiple USB-C® and USB-A ports, up to 96W of dynamic Power Delivery, and daisy chaining via Thunderbolt™ 4, the SD5765T provides a true plug-and-play experience and a tidier desktop-so you can be more productive and focused.
- Designed exclusively for Surface to provide a seamless dock and charge experience.
- Plug-and-play solution with no drivers or downloads required.
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
- Thunderbolt 4 host interface Offers a more refined structure and safer to use connectivity
- Headphone device supported for your convenience and better usability
- 5 GB/s maximum data transfer rate for fast, dependable data transfer with added productivity
- Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- HDMI effectively and conveniently transmits both audio and video signals with one single cable to ensure hassle-free connectivity
- 6 USB ports allows powerful and efficient transfer of data with maximum productivity
- 1 Network (RJ-45) Ports eliminates the need of installing additional electrical wiring
| Brand | |
|---|---|
| Brand | Kensington Computer Products Group |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 2 |
| Screen / Display | |
|---|---|
| Screen Mode Supported | 4K |
| Supported Resolutions | 3840 x 2160 |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 1 Type- | 2 |
| Number of USB 3.2 Gen 2 Type- | 2 |
| USB Power Delivery | 96W |
| Total Number of USB Ports | 6 |
| USB Type-C | Yes |
| Number of USB Type-C Ports | 1 |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Thunderbolt Ports | |
|---|---|
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Po | Yes |
| Card Reader | |
|---|---|
| Memory Card Reader | Yes |
| Memory Card Supported | microSD |
| Security | |
|---|---|
| Kensington Security Slot | Yes |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 5 GB/s |
| Manufacturer | Kensington Computer Products Group |
| Brand Compatibility | Microsoft |
| Misc Ports | |
|---|---|
| Host Interface | Thunderbolt 4 |
