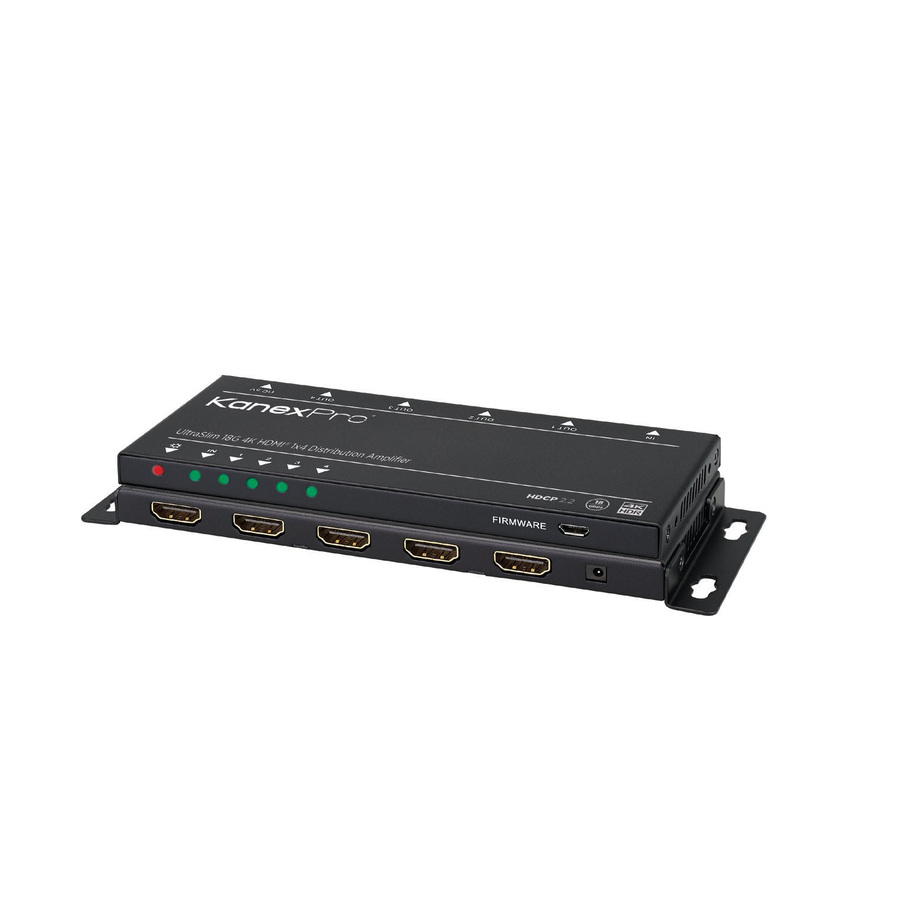

The KanexPro SP-1X4SL18G is an UltraSlim 1x4 DA designed to split one HDMI source to four 4K UHD displays supporting 4:4:4 YUV color space with HDR10. With the super bandwidth of 18 Gbps, this 1x4 splitter can be used typically with displays and projectors supporting the latest HDMI 2.0 and HDCP 2.2 for ultimate reproduction of the video signal without any loss and attenuation.
Applications:
Ideal for high-res. signal distribution in restaurants, corporate lobbies, lecture halls, house of worship centers, and conference rooms where two or more displays are used in a set-up to distribute and mirror 4K video content.
- Firmware update via micro USB
- Supports EDID management
- Auto-identifies input resolutions to match displays
- HDCP 2.2 compliant
- High-bandwidth 18 Gbps
- Transmits 4K up to 10m (32ft.)
- Incredibly thin design - only 0.4" (11 mm) thick
- Supports YUC 4:4:4 color space w/ HDR 10
- UltraSlim 1x4 HDMI DA with 4K UHD resolutions
- Supports 1080p/60 & 4K/60Hz resolutions
| Brand | |
|---|---|
| Brand | KanexPro |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 4 |
| Number of HDMI Inputs | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| General Features | |
|---|---|
| Maximum Operating Distance | 32.81 ft |
| Manufacturer | KanexPro |
