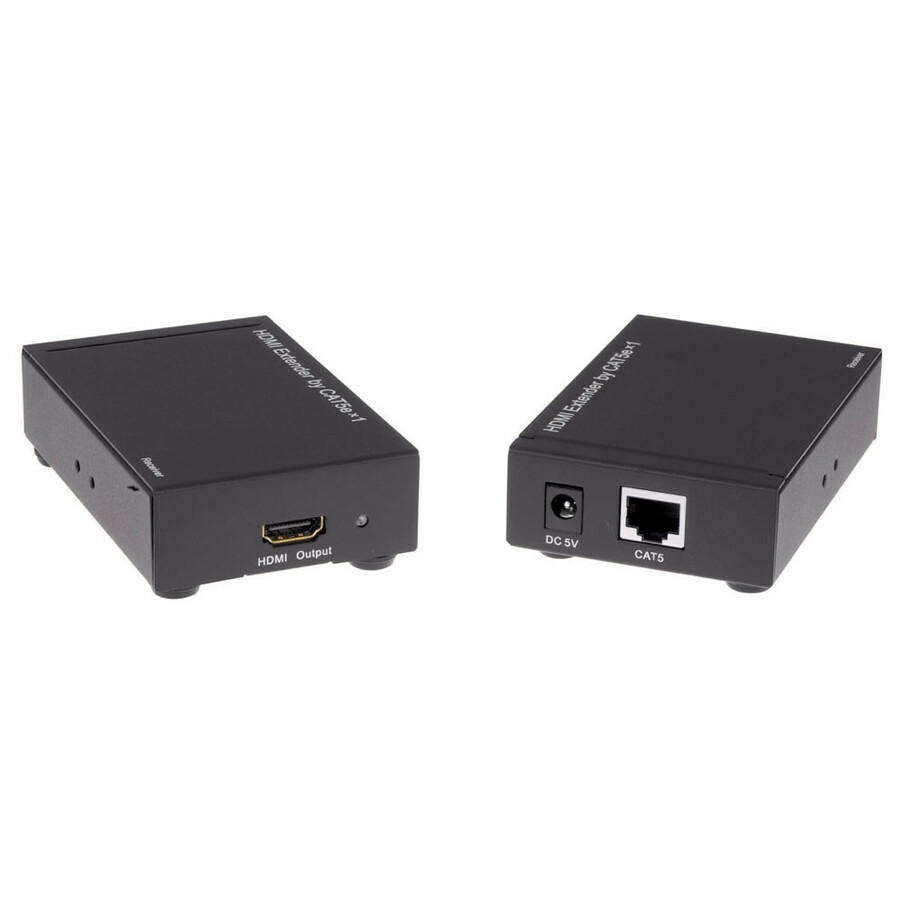

The KanexPro one input over one output HDMI Extender is designed to carry DVI/ HDMI signals over distances beyond the capability of standard HDMI/ DVI cable. It extends video and audio over a single CAT5e/6 cable up to 165ft. (50m) and is compliant with EDID.
In addition, the extender provides auto-adjustment, buffering and signal equalization to maintain pixel-perfect resolution up to HD 1080p/60 depending on the RJ-45 run. To attain full HD 1080p the distance has to be shorter than 100ft. Ideal for relocating your source such as a Blu-ray player or a satellite box to a remotely located display.
| Brand | |
|---|---|
| Brand | KanexPro |
| GPU / Graphics | |
|---|---|
| Graphics Modes | Full HD |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 13.60 oz |
| Form Factor | Rack-mountable |
| Transmitter Depth | 2.40" |
| Transmitter Weight (Approximate) | 13.60 oz |
| Transmitter Height | 1" |
| Transmitter Width | 4" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 165 ft |
| Manufacturer | KanexPro |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Brand | KanexPro |
| UPC/GTIN | 814556013427 |
| MPN | HDEXT50M |
| Unit Count | 1 Units |
| Warranty | 1 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
KanexPro HDMI Extender over CAT5/6 up to 165ft. (50m) - 1 Input Device - 1 Output Device - 165 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Rack-mountable
