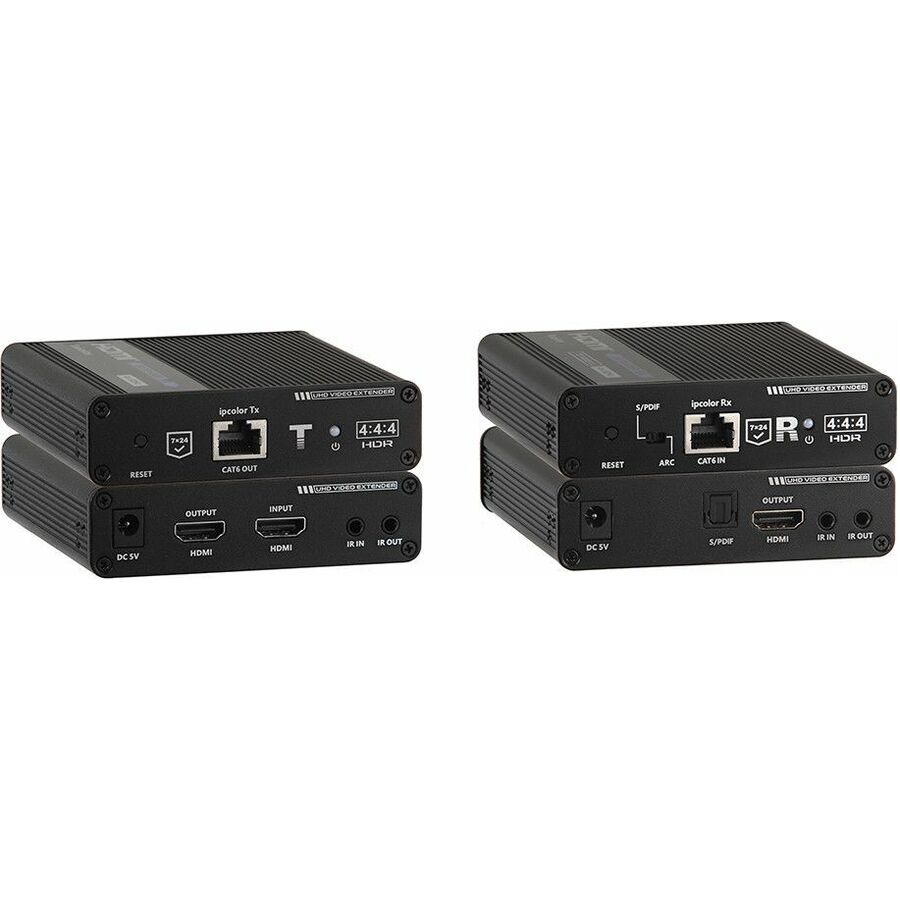

The KanexPro EXT-4KHD70M HDMI extender includes a transmitter and receiver units, allows for HDMI signals to be transmitted up to 70 meters at 4K resolution using a Cat6/6a/7 network cable. This is perfect for outdoor advertising, monitor systems, home entertainment and conference room solutions.
Applications:
Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.
- Zero Latency
- Supports transmission distance up to 230ft. (70m)
- Supports HDR(YUV 4:4:4)
- Supports UHD 4K (4K x 2K @ 60Hz)
- IR bi-directional Pass through 20-60KHz (kits included)
- HDCP 2.2 & EDID support for multiple displays
- Simple set up with zero configuration
- Compact design for flexible installations
- Support ARC S/PDIF digital audio de-embedded outputs
- Backed by KanexPro's 3 Year limited warranty
| Brand | |
|---|---|
| Brand | KanexPro |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K UHD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 7.41 oz |
| Receiver Width | 3.90" |
| Receiver Weight (Approximate) | 7.41 oz |
| Receiver Height | 1.03" |
| Receiver Depth | 4.17" |
| Transmitter Depth | 4.17" |
| Transmitter Height | 1.03" |
| Transmitter Width | 3.90" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 2 |
| Maximum Operating Distance | 229.66 ft |
| Supported Video Modes | 2160p |
| Manufacturer | KanexPro |
| Misc Ports | |
|---|---|
| Remote (IR) Input | 2 |
| Remote (IR) Output | 2 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 7 |
