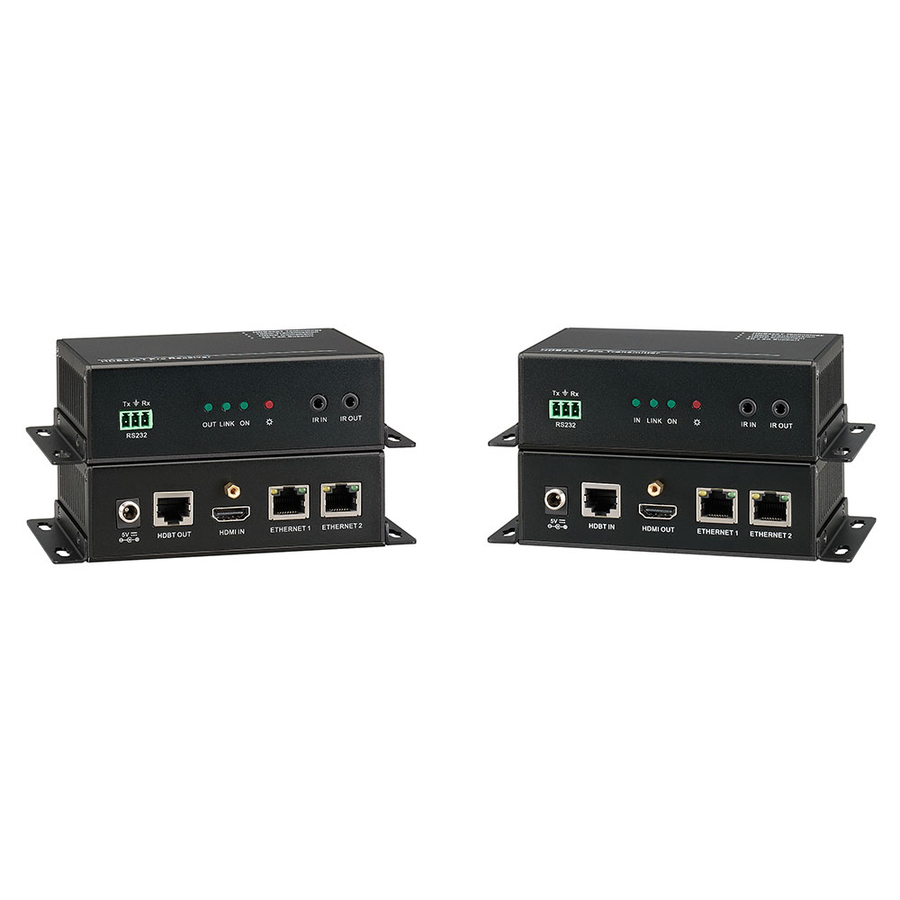

The KanexPro HDBASE100ME is a 4K compliant transmitter - receiver set that enables you to routes ultra high - definition signals up to 330 feet (100 meters) over single CAT6 cable using HDBaseT Technology. This extender also features two Ethernet ports on both the units, which can be used to connect standard network devices such as 100Base-T routers, switches and hubs for LAN access.
Ideally used with Apple TV's, Blu-ray players, game consoles, satellite boxes and HDMI based computers that require extension up to 330 feet connected to an HDTV or projector. Fully compliant with HDCP, EDID and DDC channels, this extender supports resolutions up to ultra HD 4K, 1080p/60 & 3D.
The transmitter and receiver sets are built in to metal enclosure with sturdy finish with locking HDMI connectors and power supplies which protects the unit from dis-engament or signal loss.
- Uncompressed audio support such as LPCM
- RS-232 Control
- Audio support: Dolby TrueHD & DTS Master Audio
- HDCP, CEC and EDID compliant
- Infrared Signal Input/Output, embedded over extension
- Supports resolutions of Ultra HD 4K@60Hz
- Bandwidth up to 10.2 Gbps
- Supports resolutions from 1080p/60@48bit
- Extend uncompressed HDMI signals up to 330 ft. (100m) on single CAT6 cable
- Integrates 2-Ethernet ports for network devices
| Brand | |
|---|---|
| Brand | KanexPro |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 6 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.76 lb |
| Form Factor | Rack-mountable |
| Transmitter Depth | 5.27" |
| Transmitter Height | 1.18" |
| Transmitter Width | 3.30" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 328.08 ft |
| Manufacturer | KanexPro |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
