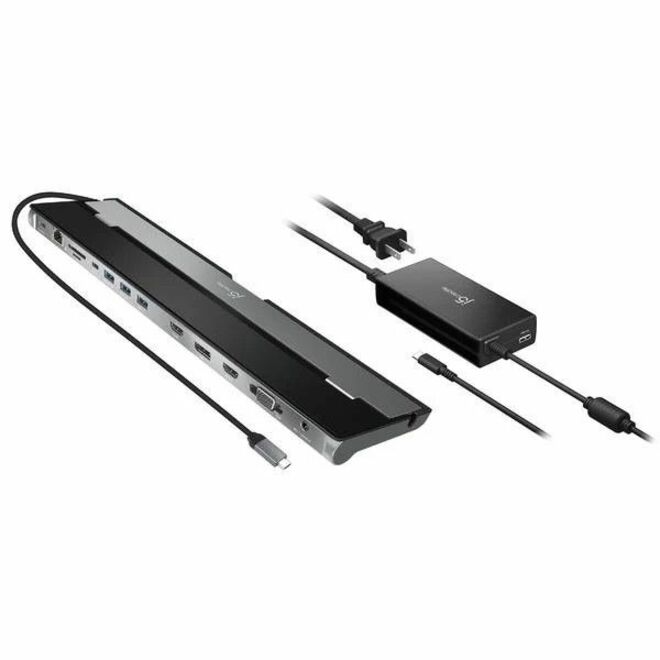

The USB-C™ Triple Display Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI™, VGA, and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.
These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.
Features:
- USB-C™ power delivery 100W pass-through
- USB-C™ downstream port Gen 1 5G x1?Power delivery adapter in port x1
- USB™ Type-A downstream port Gen 1 5G x3
- DisplayPort™ Alt mode supported
- DisplayPort™/HDMI™ output 4K @ 30 Hz
- USB™ graphic HDMI™ resolution 4K @ 30 Hz; VGA Resolution 1920 x 1080 dual output
- RJ45 Gigabit Ethernet
- SD™/microSD™ card slots allow for external memory access
- Combo audio jack mic/speaker
- Cable length 1.5 ft/45 cm
- Wired connectivity technology provides a high-powered and dependable connection
- Charging capability puts less strain on the charging port to allow prolonged usability
- USB Type C host interface Offers a more refined structure and safer to use connectivity
- Docking Station provides a trouble-free charging solution with reliable, feasible connectivity for your notebook
- 640 MB/s maximum data transfer rate for convenient, quicker exchange of data and information
- Power Delivery Pass-through feature for better reliance and usability
- Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Power Adapter power source type for your docking station provides maximum energy feasibility and added surveillance productivity
- The HDMI supports digital audio/video output to a wide assortment of HD gadgets
- 5 USB ports offers a more refined structure and safer to use connectivity
| Brand | |
|---|---|
| Brand | j5create |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 3 |
| Screen / Display | |
|---|---|
| Screen Mode Supported | 2K @ 60Hz |
| Supported Resolutions | 2048 x 1152 |
| Power & Battery | |
|---|---|
| Charging Capability | Yes |
| Power Source Type | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| Number of USB 3.1 Gen 1 Type- | 1 |
| USB Power Delivery | 100W |
| Total Number of USB Ports | 5 |
| USB Type-C | Yes |
| Number of USB Type-C Ports | 2 |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 3 |
| Number of USB 3.0 Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 2 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Po | Yes |
| Card Reader | |
|---|---|
| Memory Card Reader | Yes |
| Memory Card Supported | microSD |
| General Features | |
|---|---|
| Management Features | Wake-on-LAN |
| Maximum Data Transfer Rate | 640 MB/s |
| Manufacturer | j5create |
| Brand Compatibility | Apple |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Outputs | 1 |
| Misc Ports | |
|---|---|
| Host Interface | USB Type C |
| Cables | |
|---|---|
| Cable Length | 1.50 ft |
| Miscellaneous | |
|---|---|
| Product Name | JCD543P USB-C Triple Display Docking Station with 100W PD Adapter |
