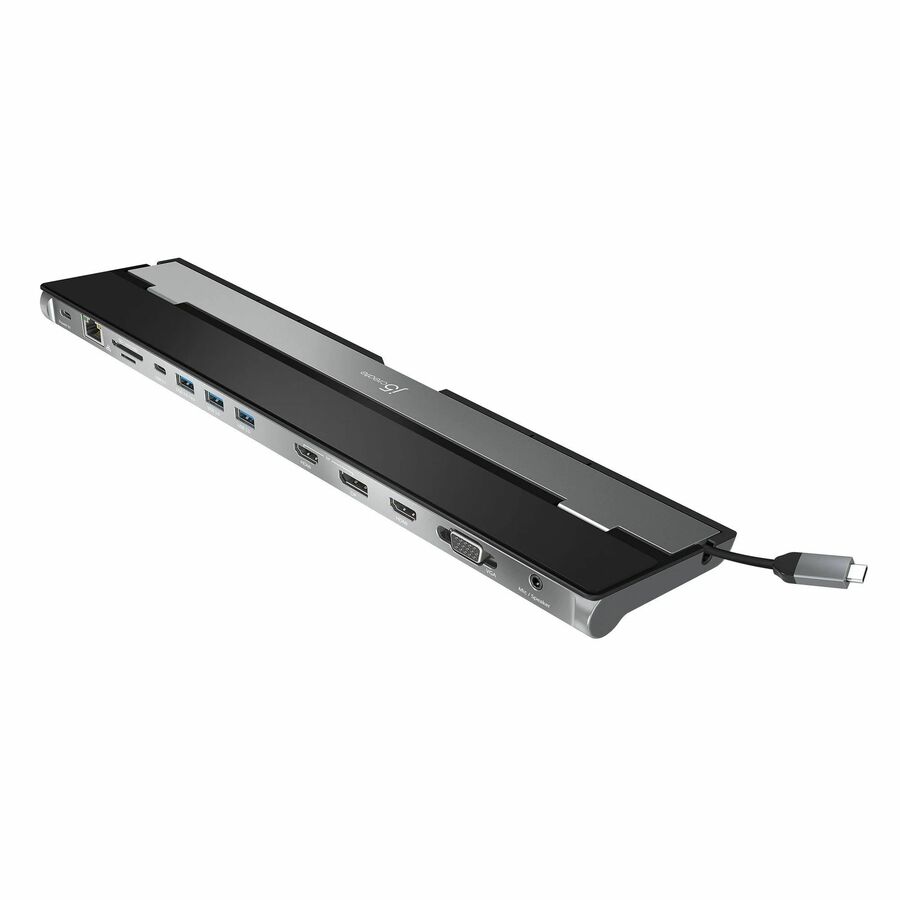

This triple display docking station turns your Mac® or Windows® laptop into a full workstation with a DisplayPort™ output, two HDMI™ outputs, and a VGA output, with resolution support up to 4K (3840 x 2160) on two displays and 1080p on the other one. You can also use your laptop screen for four displays in total, making it easy to access multiple applications at once. With 100W Power Delivery, three USB™ 3.0 ports, and a USB-C™ port, this docking station is perfect for your MacBook®, Dell® XPS™, or other USB-C™ laptop requiring additional ports.
This USB™ 3.0 docking station is also equipped with a RJ45 Gigabit Ethernet port, memory card reader/writer, and combo audio jack for maximum productivity. The elevated design assists with heat dissipation and, with its double-sided cable storage compartment, ensures an easy connection regardless of your USB-C™ port's location.
All 13 ports are combined into one slim docking station, so you'll have all the connections you need to stay productive!
Simultaneous DisplayPort™, HDMI™ and VGA Output
Supports Mirror and Extended modes on both Mac® & Windows®. The easiest way to add a second or third display.
HDMI™/DisplayPort™/VGA Output Port
Supports 3 Video Interfaces
DisplayPort™ Alt mode for HDMI™ or DisplayPort™ resolution of 4K @ 30 Hz
HDMI™ resolution of 4K @ 30 Hz and VGA resolution of 1920 x 1080 via dual output
Maximum Resolutions Supported in Extended Mode
3 types of video outputs for you to connect up to 3 external monitors and together with your laptop display, you'll have a maximum of 4 displays.
Maximum Resolutions Supported in Mirror Mode
1080p resolution is supported in a triple display configuration when VGA output is connected from macOS® devices while 4K resolution is supported in a dual display configuration when VGA output is not connected from macOS® devices
Charge your notebook or desktop through the JCD543
SD™/microSD™ Card Reader
Easily manage and backup your data from your camera, video recorder and more
SuperSpeed USB™ 3.0 Ports | 13 ports in one sleek design for all your needs | Double Sided Cable Storage Compartment
Place the cable anyway you like
Cutting-Edge Design
The advanced heat-eliminating design makes the JCD543 the perfect solution for expanding any laptop into a full-sized work-station without the worry of overheating.
Cable Storage with Dual Openings | Universal Compatibility
Compatible with both Mac® & Windows®
- TRIPLE DISPLAY FLEXIBILITY & ADAPTABILITY:
- Create a triple-monitor setup with 4K HDMI™, 1080p VGA, and 4K DisplayPort™ outputs and together with your laptop display, you can have a maximum of 4 displays. Available display combinations - HDMI™ + VGA + DisplayPort™ - HDMI™ + VGA + HDMI™
- USB-C™ 100W POWER DELIVERY:
- With the attached USB-C™ cable, the dock will power and charge power-hungry laptops, with up to 100W Power Delivery and power your connected peripherals when it's used with a USB-C™ power adapter.
- MULTIPLE CONNECTIONS:
- To support all of your USB™ peripherals, the dock provides a total of four USB™ 3.0 ports (1 USB-C™ and 3 USB™ Type-A ports), a Gigabit Ethernet port, SD™/microSD™ card slots and a combo audio jack.
- BC 1.2 FAST CHARGING:
- One of the USB™ 3.0 Type-A ports is a fast-charge port, so you can charge your mobile devices faster than you can from a standard USB™ port.
- CUTTING-EDGE DESIGN:
- Ad
| Brand | |
|---|---|
| Brand | j5create |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 3 |
| Screen / Display | |
|---|---|
| Screen Mode Supported | Full HD |
| Supported Resolutions | 1920 x 1080 |
| Power & Battery | |
|---|---|
| Power Source Type | USB |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| Number of USB 3.1 Gen 1 Type- | 1 |
| USB Power Delivery | 100W |
| Total Number of USB Ports | 5 |
| USB Type-C | Yes |
| Number of USB Type-C Ports | 2 |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 3 |
| Number of USB 3.0 Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 2 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Po | Yes |
| Card Reader | |
|---|---|
| Memory Card Reader | Yes |
| Memory Card Supported | microSD |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 640 MB/s |
| Manufacturer | j5create |
| Brand Compatibility | Dell |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Outputs | 1 |
| Misc Ports | |
|---|---|
| Host Interface | USB Type C |
| Cables | |
|---|---|
| Cable Length | 1.48 ft |
| Miscellaneous | |
|---|---|
| Product Name | USB-C Triple Display Docking Station |
