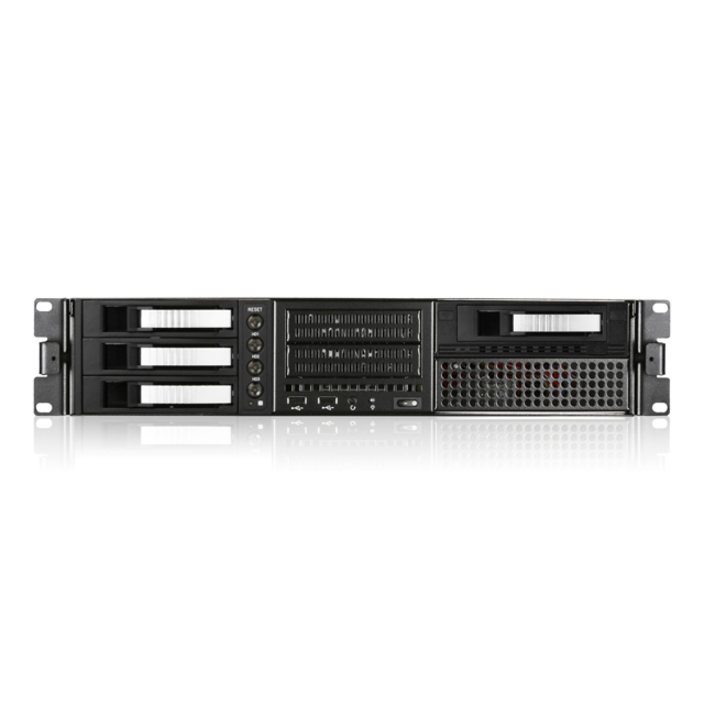

E204L-M1B3SA series rackmount chassis is designed with 4 x 3.5" hotswap drive bays, one 5.25" drive bays, and two 3.5" drive bays. Four 80mm fans are equipped with chassis to provide the best air ventilation preventing critical equipment from heat damage. E204L-M1B3SA also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications.
- Supports ATX motherboards to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 7 bays help in upgrading the system by increasing number of hardware components
- Rack-mountable size for convenient installation and smooth operations
| Brand | |
|---|---|
| Brand | iStarUSA |
| Power & Battery | |
|---|---|
| Number of Power Supplies Supp | 2 |
| Redundant Power Supply | Yes |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Front USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 2U |
| General Features | |
|---|---|
| Motherboard Supported | Micro ATX |
| Manufacturer | iStarUSA, Inc |
| Number of Fans Supported | 4 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 6 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 7 |
| Number of External 3.5" Bays | 6 |
| Number of External 5.25" Bays | 1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
