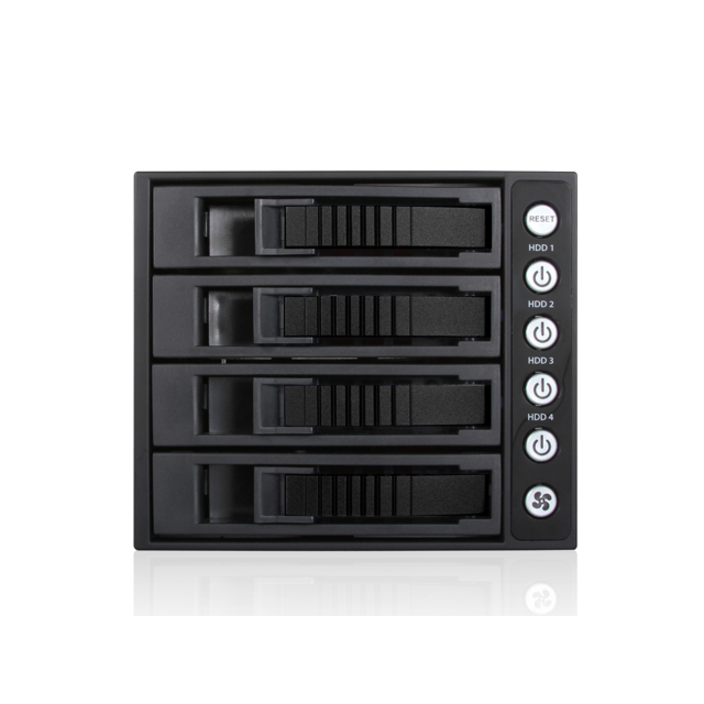

High level Raid and high availability storage in compact design, BPU-340MS series adds extra storage and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.
High density multi-disk storage backplane that allows multiple four 3.5" SAS/SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340MS supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup.
- Equipped with Fan Speed Control Switch
- 14TB Hard Drives Compatible
- Supports Both 2.5" and 3.5" SAS I/II/III & SATA I/II/III HDD/SSD
- 12Gb/s HD miniSAS Backplane (SFF-8643)
- Aluminum Design with Conductive Dissipation Grooves
- Power, fan and high temperature LED indicators
- Support Hot-Swap & RAID Configuration (need an additional RAID controller)
- Stylish aluminum color handle and heat-sink body
| Brand | |
|---|---|
| Brand | iStarUSA |
| Storage | |
|---|---|
| Number of Hard Drives Support | 4 |
| Hot Swappable Bays | Yes |
| Size / Dimensions | |
|---|---|
| Compatible Drive Bay Width | 5.25" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Cooling Fan | Yes |
| Manufacturer | iStarUSA, Inc |
| Drive Bays | |
|---|---|
| Number of Solid State Drive S | 4 |
| Number of Total Expansion Bays | 4 |
| Number of 2.5"/3.5" Bays | 4 |
| Misc Ports | |
|---|---|
| Host Interface | Mini-SAS |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | iStarUSA, Inc |
| UPC/GTIN | 846813042949 |
| MPN | BPU-340MS-BLACK |
| Unit Count | 1 Units |
