- 3 Way Aluminum Front Panel with Locks
- Front Access USB2.0 x2
- 80mm x4 Cooling Fan
- Front Mount ATX Power Supply
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
Product Introduction

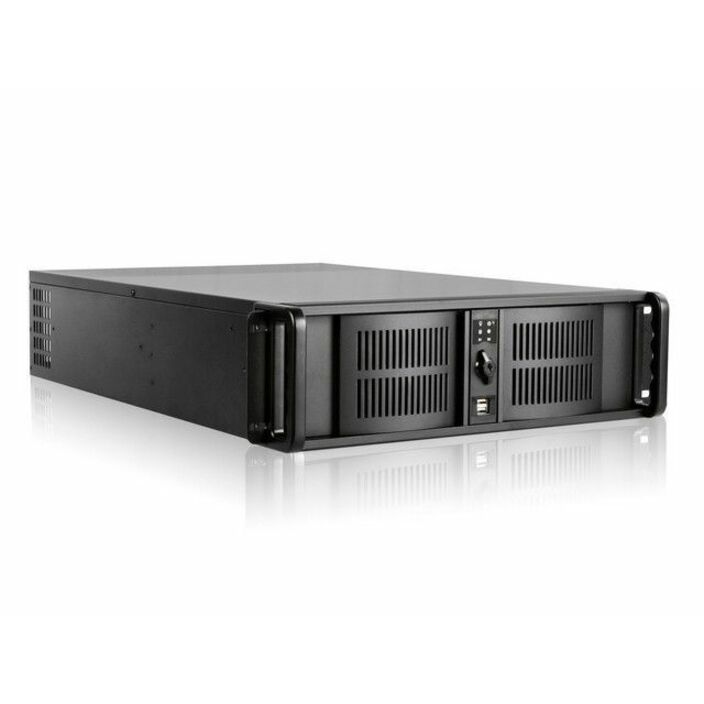

The D-300L-FS incorporate performance and capacity in a 3U form factor. It features two 5.25 and six 3.5 bays for high density storage application. Whether its web server, database server, D-300L-FS can accommodate the thermal requirements of dual processor and Raid drive storage needs. The 7 PCI slots support PCI, PCI 64bits, AGP, and PCI-Express add-on cards which enable future upgrades for customized functions and application needs. D-300L-FS is a cost effective chassis for data and storage server.
- Supports ATX motherboards to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 8 bays for a tailor-made PC configuration
- Sturdy 1 x fan(s) rack-mountable case to shield censorious hardware and the user-friendly structure enables easy operations
| Brand | |
|---|---|
| Brand | iStarUSA |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Front USB | Yes |
| USB Port Details | 2 x USB 2.0 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 3U |
| General Features | |
|---|---|
| Motherboard Supported | Micro ATX |
| Cooler Type | Fan Cooler |
| Installed Fan Size | 3.15" |
| Installed Fan Size Details | 4 x 80mm |
| Fan Size Supported | 2.36" |
| Manufacturer | iStarUSA, Inc |
| Number of Fans Supported | 1 |
| Number of Fans Installed | 5 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 7 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 8 |
| Number of External 3.5" Bays | 1 |
| Number of Internal 3.5" Bays | 5 |
| Number of External 5.25" Bays | 2 |
