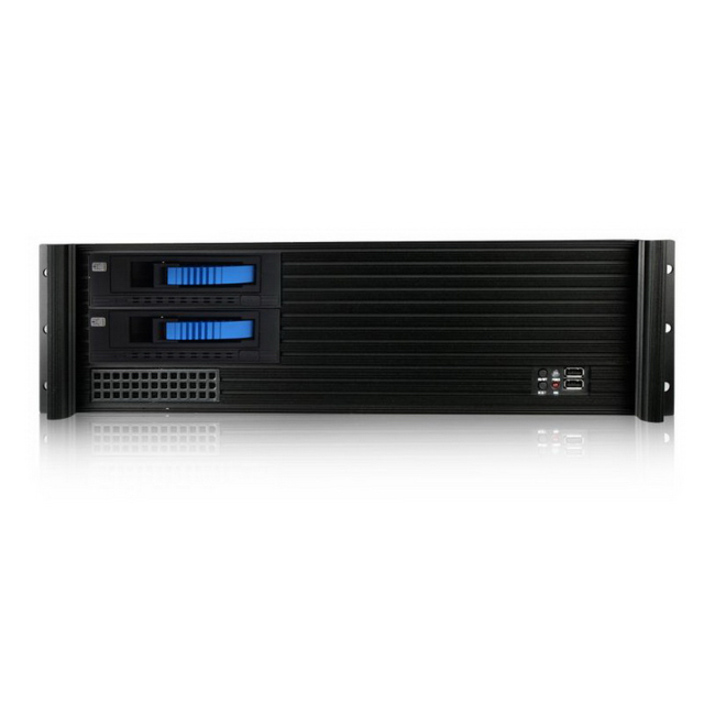

D-313SE-MATX-2M1 is a reliable and stable 3U-high 15" depth industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 15" deep and has optional 120mm and 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-313SE-MATX-2M1 supports a standard PS2 power supply to meet regular server system applications.
- Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 7 bays for a tailor-made PC configuration
- Conveniently install in a rack and enables operational activities on the go
| Brand | |
|---|---|
| Brand | iStarUSA |
| Power & Battery | |
|---|---|
| Number of Power Supplies Supp | 1 |
| USB Ports | |
|---|---|
| Front USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 3U |
| General Features | |
|---|---|
| Motherboard Supported | Mini ITX |
| Manufacturer | iStarUSA, Inc |
| Number of Fans Supported | 4 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 7 |
| Number of External 3.5" Bays | 3 |
| Number of Internal 3.5" Bays | 4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
