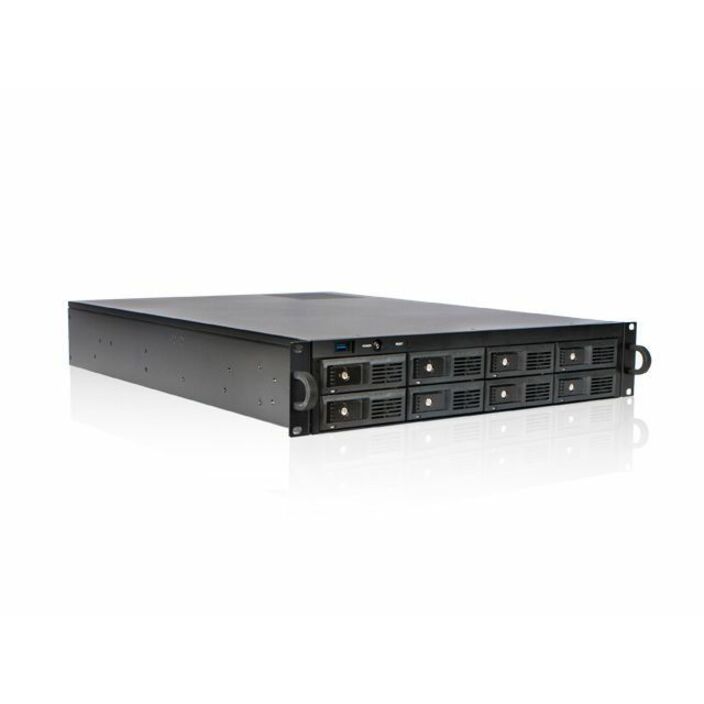

The M-280HD-MATX M series of trayless storage server rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage servers. The chassis is equipped with two HD miniSAS (SFF-8643) backplanes to support the latest SAS and SATA hard drives and also is compatible with ATX power supplies. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.
- 8 trayless hot-swappable bays for 3.5" HDDs
- Worlds first trayless server rackmount
- HD miniSAS (SFF-8643) HDD Backplane
- Metal key lock for HDD front bezel
- Fully RoHS compliant
- USB 3.0 in front for easy access
- Supports standard ATX power supplies
- Compatible with redundant power supplies
- High density storage server chassis
- Supports 3.5" SAS I/II/III and SATA I/II/III HDD
- High Performance Transfer Rate up to 12Gb/s
| Brand | |
|---|---|
| Brand | iStarUSA |
| Power & Battery | |
|---|---|
| Power Supply Installed | No |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 1 |
| Front USB | Yes |
| USB Port Details | 1 x USB 3.0 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 2U |
| General Features | |
|---|---|
| Motherboard Supported | Mini ITX |
| Cooler Type | Fan Cooler |
| Fan Size Supported | 3.15" |
| Manufacturer | iStarUSA, Inc |
| Number of Fans Supported | 3 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Drive Bays | |
|---|---|
| Number of Internal 2.5" Bays | 1 |
| Number of Internal 3.5" Bays | 8 |
