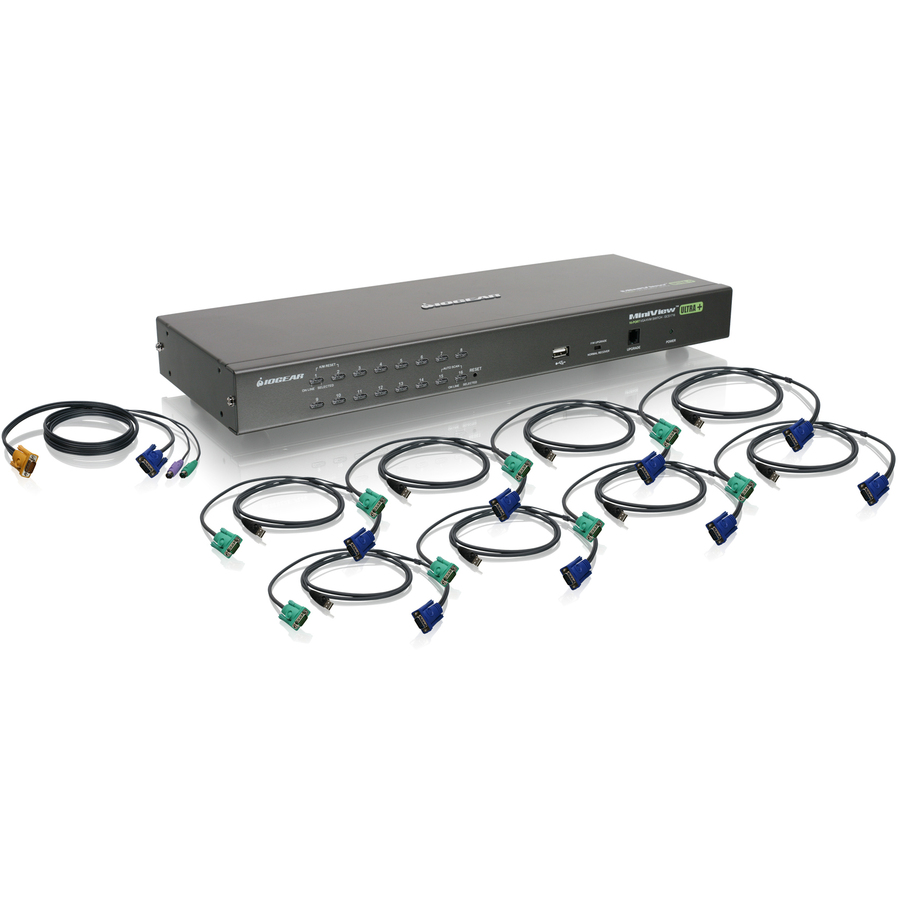

16-Port USB PS/2 Combo KVM Switch with Cables is a combo switch allowing access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS16KIT features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.
- Fully Supports DDC2B
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
- Front USB Port - Fully compliant with USB 1.1 for system upgrades and shared peripherals**
- Rack mountable in a 19" (1U) system rack
- Maximum video resolution: up to 2048 x 1536
- Security - 2 level password protection for OSD
- Cascade up to 2 levels - control up to 256 computers from a single console*
- Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display), and hotkeys
- Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
| Brand | |
|---|---|
| Brand | IOGEAR |
| GPU / Graphics | |
|---|---|
| Graphic Mode | QXGA |
| Networking & Connectivity | |
|---|---|
| Daisy Chain Supported | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 2048 x 1536 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Number of Computers Supported | 16 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | IOGEAR, Inc |
| UPC/GTIN | 881317503664 |
| MPN | GCS16KIT |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
