The Future of High-Speed Connectivity
Experience the next generation of connectivity with Thunderbolt™ 5. Enjoy blazing-fast data transfer speeds of up to 80Gbps, connect multiple high-resolution displays, and charge your laptop with up to 140W of power delivery.
Your Vision, Amplified

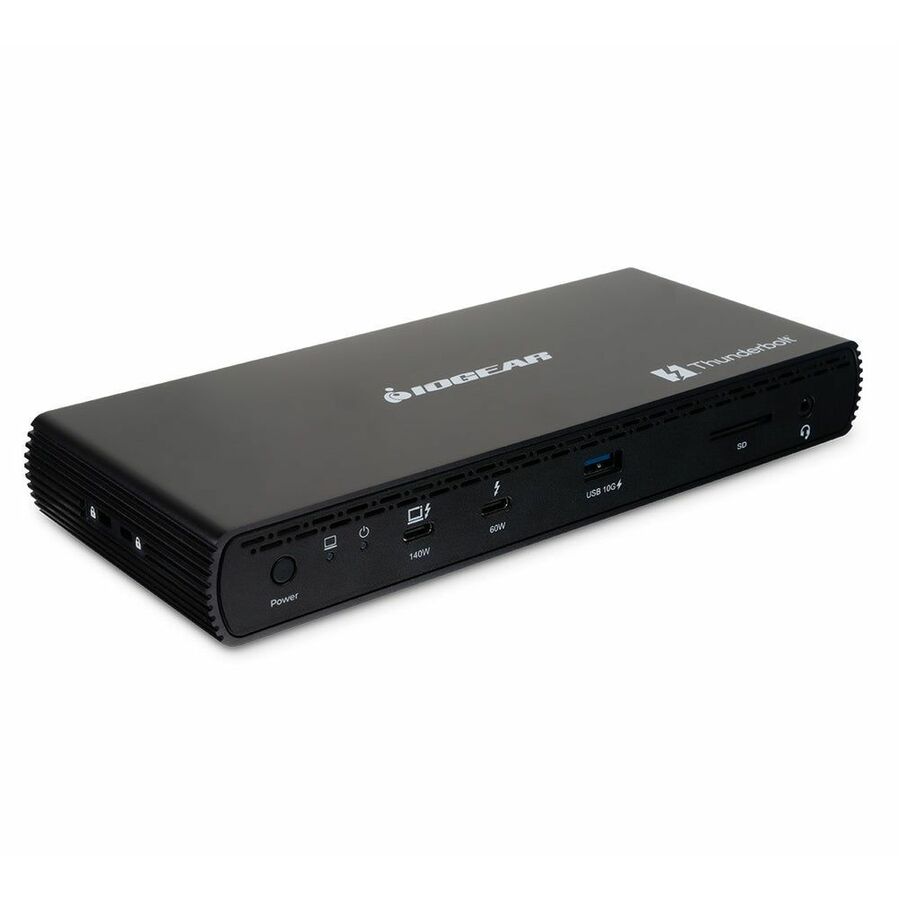

Immerse yourself in stunning visuals with support for up to dual 8K displays or triple 4K displays. Whether you're editing 8K video, designing complex graphics, or simply multitasking, the Quantum Thunderbolt™ 5 Dock Pro delivers the ultimate visual experience.
Connect Your World, Effortlessly
Stay connected to all your devices with a comprehensive range of ports, including Thunderbolt™ 5, USB-A, 2.5 gbEthernet, and a 3.5mm audio jack. Whether you're plugging in a keyboard, mouse, external hard drive, or network cable, the Quantum Thunderbolt™ 5 Dock Pro has you covered.
Power Your Day
Keep your laptop charged and ready to go with up to 140W of power delivery. No more worrying about low battery life, focus on your work and let the Quantum Thunderbolt™ 5 Dock Pro handle the rest
Seamless Collaboration, Simplified
Boost your productivity and streamline your workflow with Thunderbolt™ Share. Effortlessly share files, peripherals, and even your screen between two PCs.
- Up to Dual 8K@60hz or Triple 4K@144hz (up to 120 Gbps with Bandwidth Boost)
- Supports Video over USB-C (Thunderbolt™ 5)
- 3x Thunderbolt™ 5 downstream ports - one with PD60W and two with PD charging PD15W
- USB-A port (10gbps) available for connecting USB peripherals
- 2.5 Gigabit Ethernet
- 3.5mm Combo Audio Jack
- SD 4.0 card reader
- Supports Thunderbolt™ Share Software, enabling fast PC-to-PC connectivity experiences
- Up to 140W for host power delivery
| Brand | |
|---|---|
| Brand | IOGEAR |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 3 |
| Screen / Display | |
|---|---|
| Screen Mode Supported | 4K @ 144Hz |
| Supported Resolutions | 3840 x 2160 |
| Power & Battery | |
|---|---|
| Charging Capability | Yes |
| Maximum Power Supply Wattage | 180 W |
| Power Source Type | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB Power Delivery | 140W |
| Total Number of USB Ports | 7 |
| USB Type-C | Yes |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 4 |
| Thunderbolt Ports | |
|---|---|
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 3 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Po | Yes |
| Headphone/Microphone Combo Port | Yes |
| Card Reader | |
|---|---|
| Memory Card Reader | Yes |
| Memory Card Supported | SD |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 10 GB/s |
| Manufacturer | IOGEAR, Inc |
| Misc Ports | |
|---|---|
| Host Interface | Thunderbolt 5 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
