Reliable Power Back Up for All IT Equipment Needs

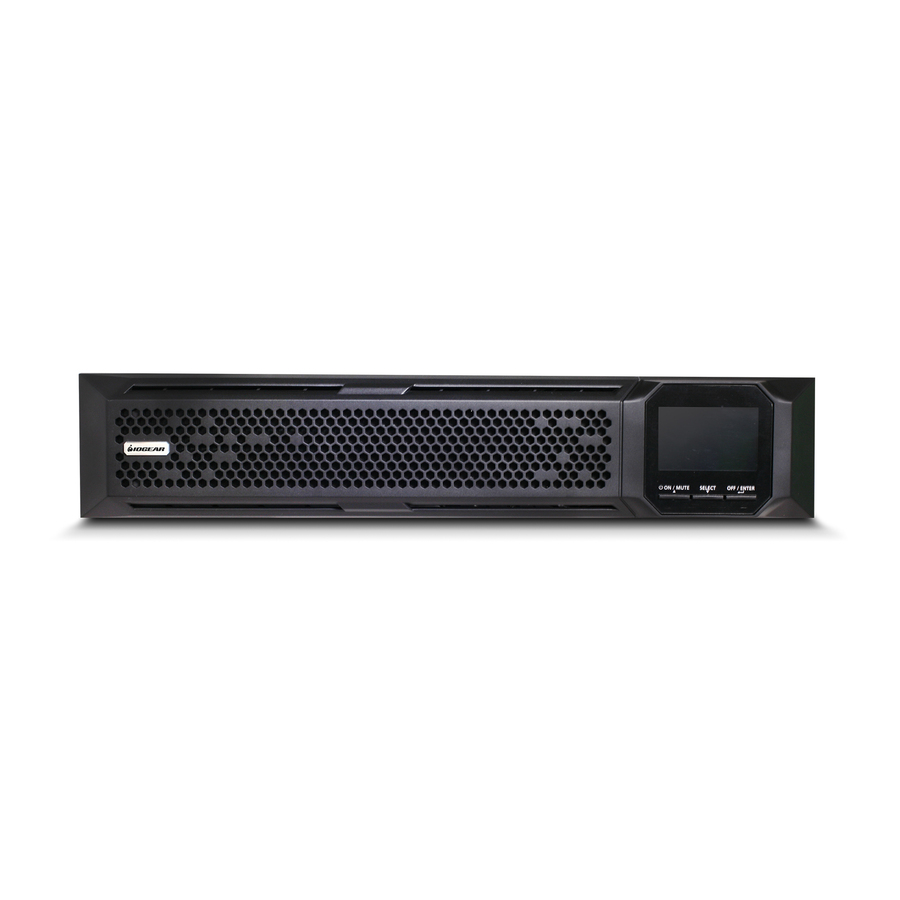

IOGEAR Online UPS Battery Back Up GBB2000N ? 2000VA/1930 Watts is a high-performance UPS system with NEMA 5-20P input plug and 8 NEMA 5-20R outlets designed for most server rack configurations that support data, network and communication applications. It utilizes true double conversion with 96% power factor efficiency for all the power supplied by the UPS for critical IT equipment needs and output voltage regulation provides higher performance for critical applications. The rackmount form factor installs use only two rack spaces (2U). It ships with all mounting accessories for a four-post rackmount installation.
Online UPS Battery Design
IOGEAR Online UPS design utilizes true double conversion with 96% power factor efficiency over industry & competitor standards for all the power supplied by the UPS for critical server needs and output voltage regulation provides higher performance for critical applications.
Expandable Power Configurations
IOGEAR Online UPS provides expandable power solutions with External Battery Packs that can be daisy chained to increase system runtime.
Programmable Power Management Outlets
During a power failure, this feature enables users to extend battery time to mission-critical devices by shutting down noncritical applications and devices.
Emergency Power Off function
EPO connector at rear panel allows emergency UPS Power Off from a remote location.
SNMP + USB + RS-232 Multiple Communications
Use either USB or RS-232 communication ports to work with SNMP interface simultaneously.
Swappable Battery Design
IOGEAR Online UPS Battery Back Up swappable battery design allows for complete power module exchange without powering down connected equipment.
Efficient Power Modes
IOGEAR Online UPS batteries use ECO Mode to conserve energy and allow up to 97% efficiency cutting energy usage and cost. The unit provides over-voltage cut-off protection and surge immunity by MOV for full-time equipment protection. The Online UPS battery high power factor charging up to 1930W capacity with very low ripple current when charging the battery. The smart battery charger design allows the Online UPS to optimize battery performance by adjusting charging voltage according to outside temperatures and extends the useful service life of batteries.
- True double-conversion - Output power factor is 0.96, which means all of the power supplied is being used for productive work and makes work the most efficient.
- Output voltage regulation < 1% - Provides higher performance and efficiency for critical applications.
- Programmable power management outlets - Users can easily and independently control load segments. During power failure, this feature enables users to extend battery time to mission-critical devices by shutting down noncritical devices.
- Emergency Power Off function (EPO) - EPO connector at rear panel allows emergency UPS Power Off from a remote location.
- SNMP + USB + RS-232 multiple communications - Allows either USB or RS-232 communication ports to work with SNMP interface simultaneously.
| Brand | |
|---|---|
| Brand | IOGEAR |
| Power & Battery | |
|---|---|
| Energy Saving | >96%(ECO) , >89%(Batt) , >90%(AC) |
| Number of Battery & Surge Out | 8 |
| Input Frequency | 70 Hz |
| EPO Port | Yes |
| Receptacle Detail | 8 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA 5-20P |
| Number of Battery & Surge Outlets | 8 |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 4 |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage | 120 V AC |
| Load Capacity (Watt) | 1930 W |
| Load Capacity (VA) | 2000 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 48 V DC |
| Backup/Run Time (Full Load) | 2.95 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Transfer Time | 0 ns |
| Waveform Type | Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | IOGEAR, Inc |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 122°F (50°C) |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
